Inside The Real Repair Shop 3

Save time and money with a multimeter and a quick look at alkaline versus rechargeable batteries.

Batteries are needed for all kinds of toys, remote controls and the latest gadgets. With a smattering of basic awareness, a tool like a multimeter can be used by anyone, saving one time, cash and help to save waste and who wouldn’t want to do that?

For under £10 (GBP), a decent multimeter can be bought online and, armed with a few YouTube videos on your phone, you’ll be able to test batteries to see if they’re still up to scratch, test domestic fuses in plugs when the lights go out and prove that power adaptors are OK before buying new.  And that’s just the start, exciting eh?

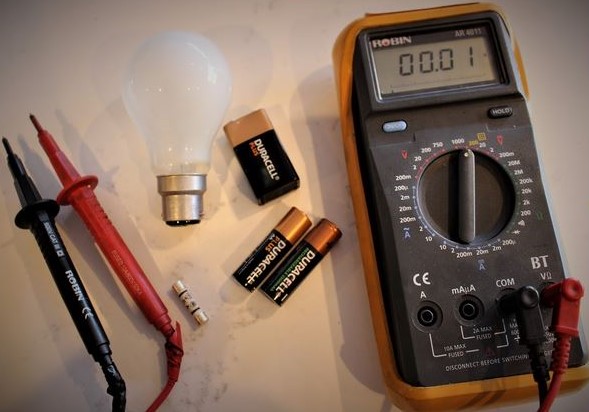

FixItWorkshop, Worthing, January’21, a basic multimeter, batteries, bulb and fuse. Many uses!

I’m not going explain every function on a general purpose multimeter, but I do want to dispel one myth: Multimeters are difficult to use. They simply are not. Assuming you can turn a dial and read a number display, then all you have to do is put the test probes on the right part and then voilà, you’ll be ready to measure things.

Take a standard 1.5V AA battery. It has a + (positive) end and a (negative) end. The red probe should touch the positive end and the black lead should touch the negative end, it’s that simple. Assuming that you’ve selected the DC voltage (10’s) range, a good AA (alkaline) battery will show between 1.5V and 1.68V when new. Anything less and the battery is starting to fade and may need to be replaced.

It’s worth noting at this point that some things are capable of running on less battery juice, for longer. Take a quartz clock with one AA battery. Chances are that it will run for years on a battery, even though over time, the voltage will fall below 1.5V. If you put that same aged battery from the clock into a toy car for example, the chances are that the toy wouldn’t work properly or even at all. To some things, battery voltage is critical, others not so much.

What about normal alkaline batteries versus rechargeable ones, I hear you say faintly, are they worth it?  As with all things, it depends.  Not all battery specifications are the same, so check details carefully when making a purchase.  It’s easier than you think.  Based on detailed shed-based experiments, I generally use rechargeable types in items that tend to use-up batteries quickly, such as radio control car toys and so on.  For something like a clock or a TV remote control handset, where batteries tend to last longer, I recommend conventional types as these items are sometimes more sensitive to voltage differences.  The aim overall is to buy fewer batteries and by using rechargeable ones, which are generally more expensive to get started with, in things that ‘eat batteries faster’, they begin to make economic sense.

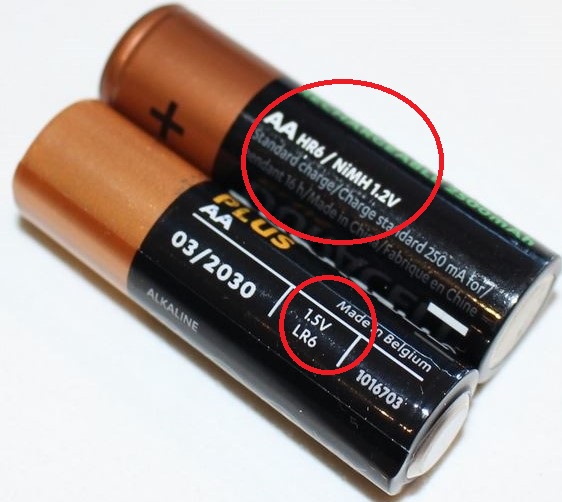

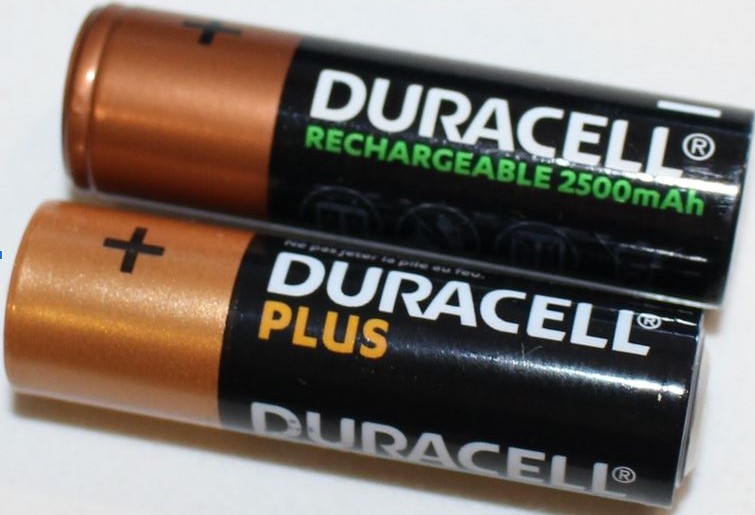

Image left: Rechargeable batteries and conventional ones can look similar.  Image right:  Check battery specifications carefully, before deciding that something doesn’t work correctly.

Here’s something you’ll be familiar with.  You go to use something that takes batteries that you haven’t used for ages, only to find that it won’t work.  Upon opening up the little battery door, you’re then greeted with an unpleasant mass of rusty, acidic battery leftovers which have been festering since last Christmas.  In situations like this, many will simply throw away, but often, all that’s required is light restoration with contact cleaner, maybe some wire wool and something like kitchen roll.  More serious battery contact damage can often be solved with new battery contacts, which are available on eBay for small change.  Remember, remove batteries when something’s not in use.

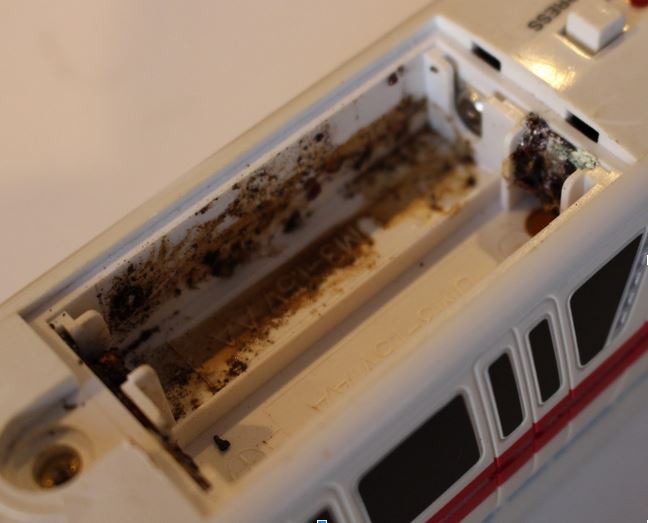

FixItWorkshop, Worthing, January’21, battery leakage has caused corrosion damage to the battery connections (repairable).

If you don’t already own one, make sure you add a digital multimeter to your birthday list this year. Now go and recharge your own batteries with a nice cup of tea.

Wall-E gets back on track

A simple cable tie comes to the rescue again.

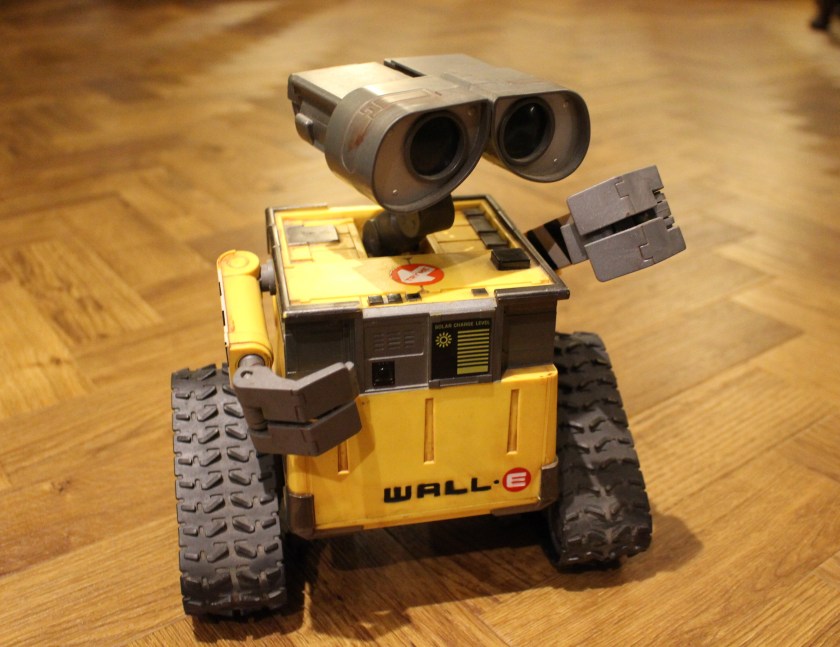

Cast your minds back to 2008, and you might remember Wall-E, a Disney Pixar animated film set in the 29th century, where mass consumerism and environmental disregard have turned Earth into a literal wasteland. I’ll let you Google the rest of the plot yourself, but suffice to say that the film’s protagonist, Wall-E or Waste Allocation Load-Lifter; Earth class, is one of the cutest robots on the big screen. While the film’s environmental messages are extreme, there are clear warnings about the way our species generally looks after its home which were provoking twelve years ago, but are now ever more poignant in 2021.

No one does cinema merchandise quite like Disney, and it’s not without a slight sense of irony that the company produced many Wall-E related products to accompany the film’s release, all around the world. I wonder what proportion of those items are now in landfill? Something to ponder over a cup of tea or two.

Wall-E and I have quite a bit in common as we both have a penchant to collect discarded items. It’s not unheard of for me to collect broken objects from skips and from the side of the road, but that’s a blog entry for another day.

A local Worthing lady got in touch to ask if I would repair her much beloved Wall-E robot. How could I resist? A broken toy robot in need of some TLC, what’s not to like.

Make and model: Mattel Remote Control Wall-E

Fault reported: No drive on one side/ track

Cost of replacement machine: £75.00 (Amazon.co.uk, December 2020)

Manufacturer support: 0/10

Cost of parts (for this repair): 1p

My time spent on the repair: 1 hour

Tools needed: Screw drivers, pliers, cutters

Sundry items: None

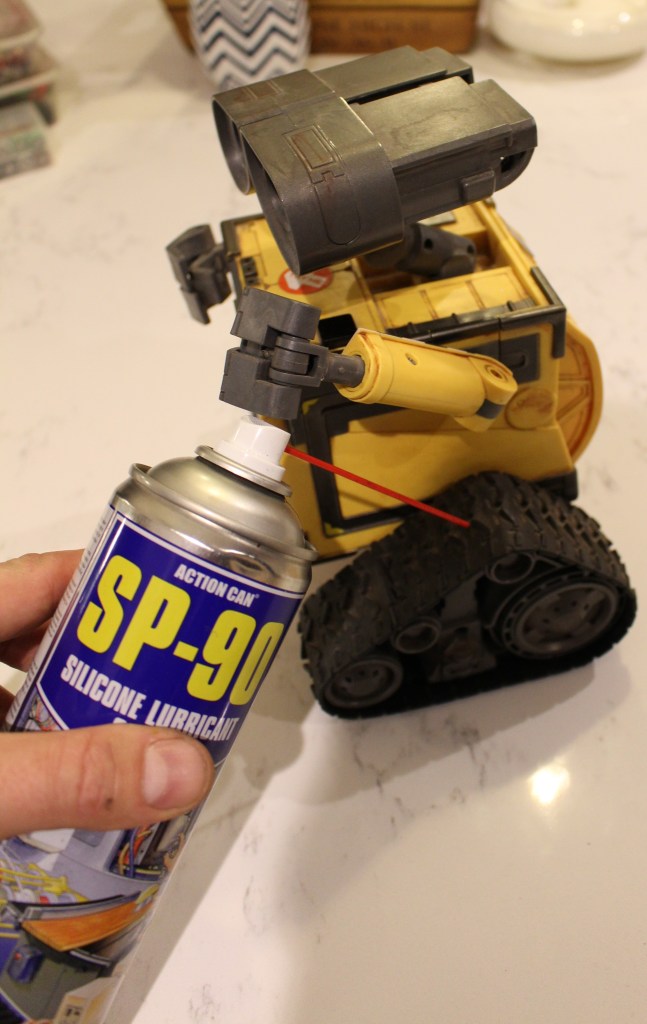

Cleaning materials: Silicone spray, damp cloth

Repair difficulty: 5/10 (fiddly)

Beverages: 1 X tea

Biscuits consumed: 1 ginger nut (and maybe a slice of cake)

Just to warm you up, here’s a cool little slideshow

Being frank with you, I had my doubts with this one. Toys like this contain lots of small, fragile parts with little in the way of easy service access. My chances of success were 50/50, so I was going to need a bit of luck.

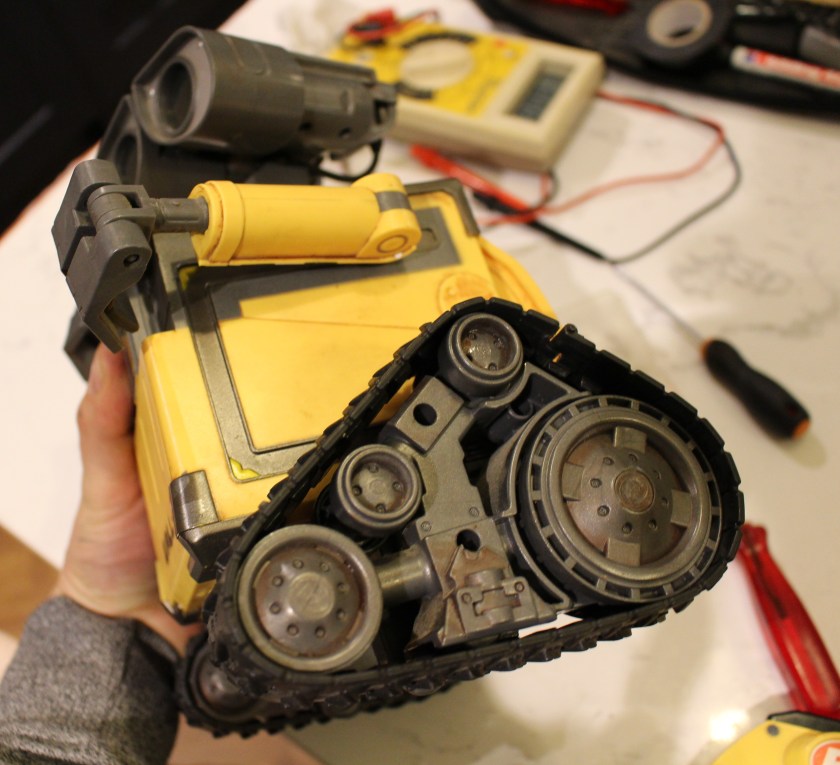

Wall-E’s tracks allow for movement forward (straight along) and also degrees of clockwork rotation. Wall-E isn’t supposed to turn left and right, strangely enough.

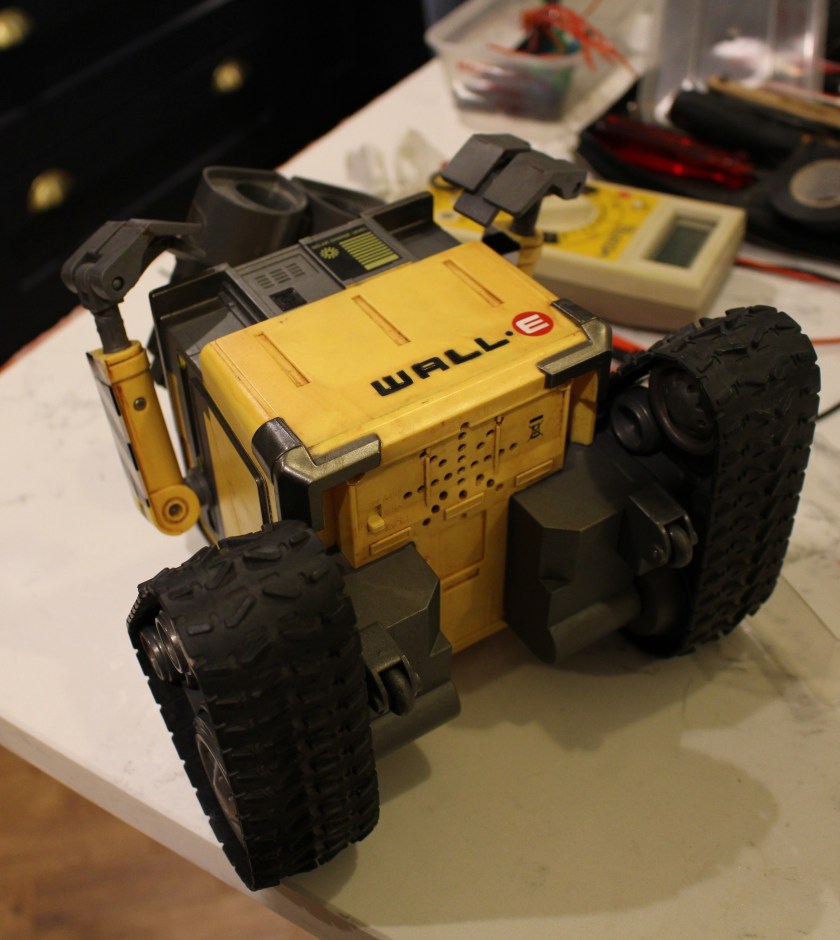

The problem with this Wall-E was that ‘he’ (I think) would only move around in circles and would not move forwards. Dizzy stuff. This was because one of the tracks wouldn’t move when operated by the remote control. Time to dig out the screwdrivers.

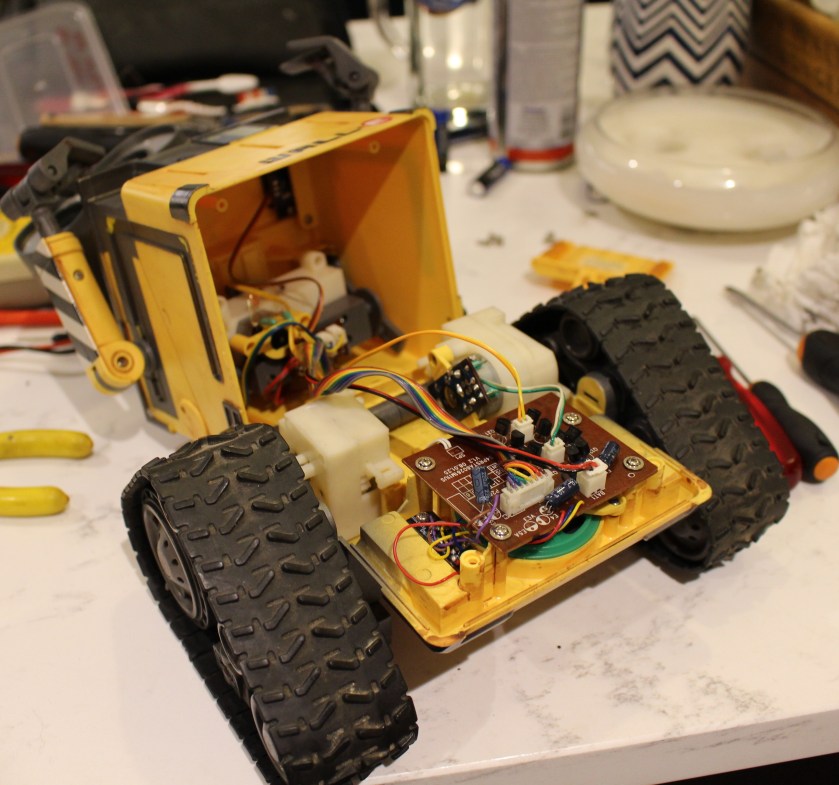

Mattel’s Wall-E comes apart in a fairly modular fashion. Things like the battery cover, main base cover, motor, gearbox and electronics are all neatly housed within the toy’s chassis, and it’s all held together with simple self-tapping screws. This meant that I at least stood a decent chance of getting the robot apart, without causing more damage. Often with toys like this, parts are clipped or glued together, making disassembly a fairly destructive affair. Dismantling this toy was fairly routine, luckily. Despite this luck, I knew that no spares would be available from the manufacturer, so extra care and tea were still needed.

The reason the track wouldn’t rotate was because whatever it was inside that was meant to drive it, was no longer doing its job. The motor was whirring when the ‘forward’ button was operated, so one could assume that the issue was likely to be mechanical. Things were looking up.

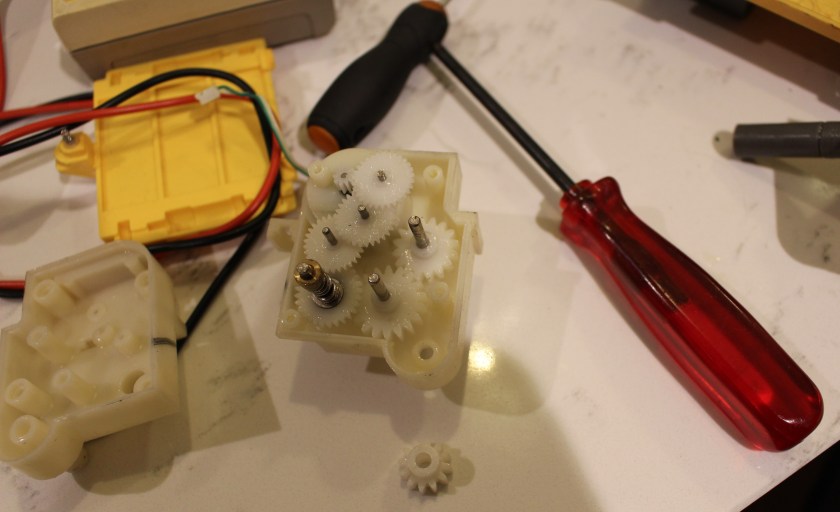

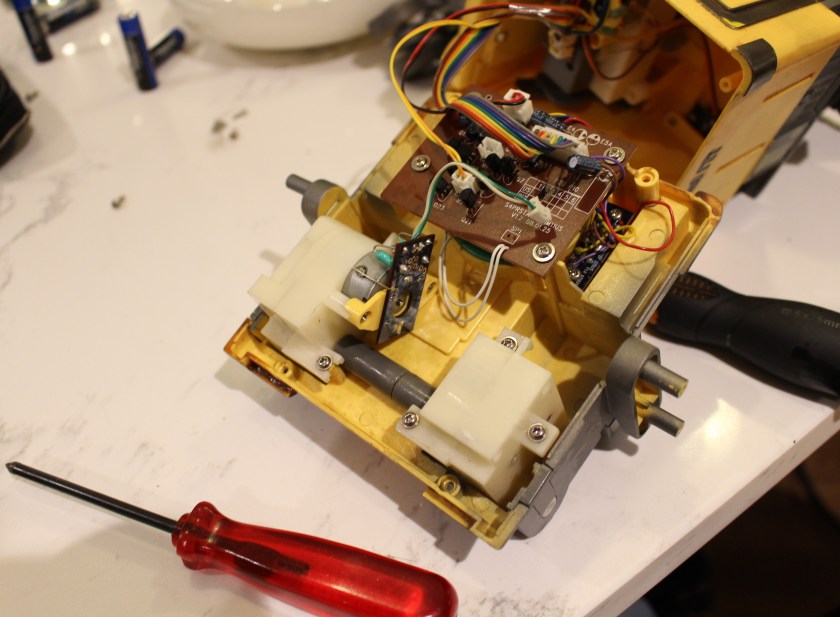

Two gearboxes operated by a single motor, propel the toy along or around in a circle. Depending on the direction of the motor’s spin, one or both gearboxes engage to drive the robot’s tracks. Upon inspection, this ‘motor-gearbox action’ was working well, but the output from one side was not turning, the side with the faulty track. Bingo!

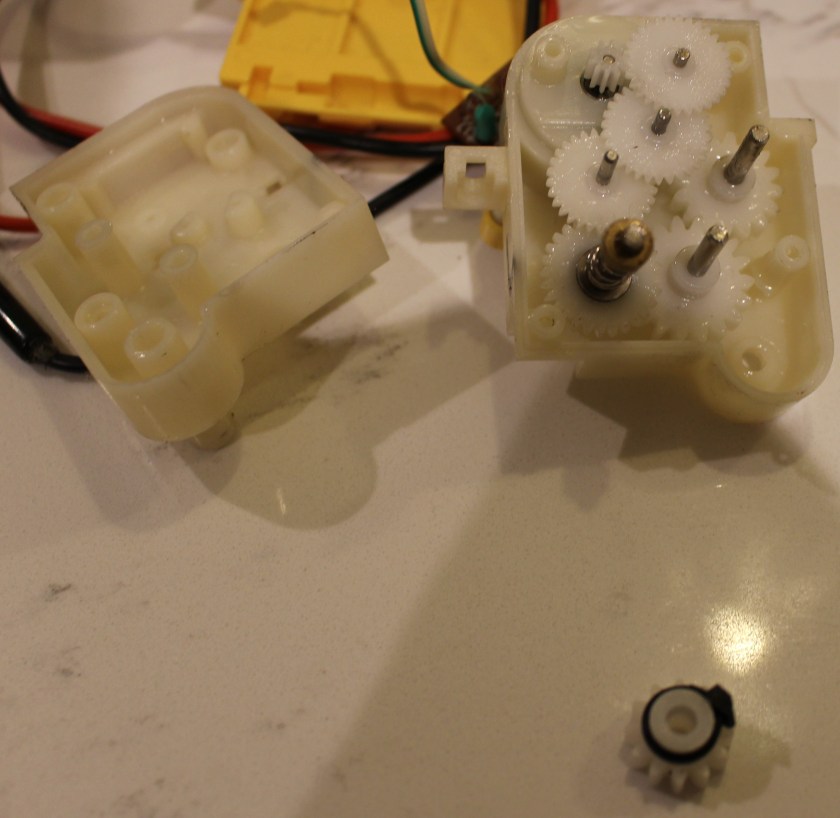

The affected gearbox was simply held together with small self-tapping screws, which meant easy dismantling. At this stage I was wondering what I’d find inside. A shredded gear, pieces of plastic all over the place? Any of those things would have spelled disaster, so I was pleasantly surprised when all I saw was a small crack in the main output cog, which drives the track. Getting a small cog to match the damaged one might have been possible, but would have taken time and a lot of patience. I mean I’m fairly patient, but even I have my limits. As the cog hadn’t totally split in half, I simply put a small cable tie tightly around the cog’s shank. I’m sure you would have done the same.

After a little cog-fettling and a little trim of the cable tie with a sharp knife, I returned the repaired cog to the gearbox, with my fingers crossed.

Reassembling the gearboxes, motor and other gubbins to Wall-E’s interior was pretty much the reverse of what I’d done so far, taking care to lubricate things like track belts and sliding parts with a little silicone to ensure smooth service.

There was some evidence of previous battery leakage damage to a couple of the battery contacts, so a little battery compartment spring-cleaning with contact cleaner and an old toothbrush was required before new power was installed. Never throw away your old brush, they’re just so handy for cleaning in those hard-to-reach nooks and crannies.

I had all fingers and toes crossed before firing up Wall-E with fresh batteries for the first time. There were a lot of small fragile parts in Wall-E, and it wouldn’t have been inconceivable for me to have broken a wire by mistake. Fortunately, Wall-E sprang to life, and for the first time on my watch, went along in a straight line. How long would my cable tie fix last? Well, all I can say is that I gave the toy a thorough testing around the kitchen floor maybe once or twice before handing it back to the owner.

Time for a celebratory cuppa and ginger nut.

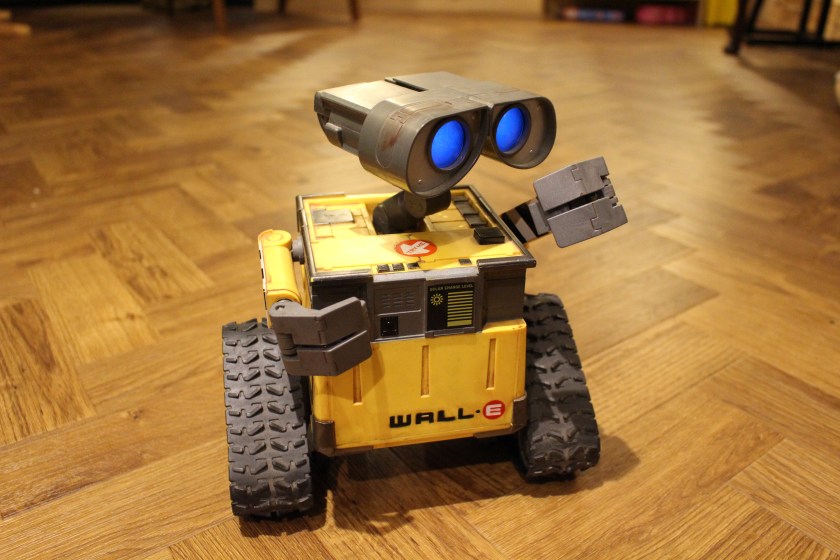

FixItWorkshop, Worthing, January’21, Wall-E running well!

DeLonghi Magnifica S Coffee Machine

Repair for small beans: A magnificent brew from the DeLonghi Magnifica S Coffee Machine

With more knobs and whistles than the Star Ship Enterprise, it’s no wonder that coffee machines like this have become very popular among coffee lovers. From the comfort of your own kitchen, you can brew-up in much the same way as a skilled barista in your local coffee shop does. With a machine like this, you will rarely ever make a mistake, since all measurements and mixes are made at the touch of a button. It’s a compelling package for the coffee nerd.

However, as we all know from school, the more complicated we make something, there’s an increased likelyhood of it going wrong at some point in the future.

I mean, they’re just so darn complicated. Don’t get me wrong, I admire the mechanical packaging and clever processes within these machines, but if just one small part of the mechanism goes wrong, the whole thing fails and the machine is then useless. And these things are not cheap.

The Magnifica S is a premium machine and Delonghi have been making these products for many years, so luckily, some parts are available for when things fall over. In my experience, DeLonghi coffee machines are of reasonable quality.

Make and model: DeLonghi Magnifica S (ECAM 22.110.SB)

Fault reported: Major leak

Cost of replacement: £330-400 when new

Manufacturer support:  5/10

Cost of parts: £1.50

My repair time: 2 hours

Tools needed: Small screwdrivers, small levers, cutters

Sundry items: Cable ties

Cleaning materials: WD-40, damp cloth, soap and water

Repair difficulty: 6/10

Cups of tea: x2

Cups of coffee: x1

Biscuits: Ginger nut x2

The owner of this machine used it everyday and upon delivering it to me for repair, was anxious to get it back soon for his daily caffeine hit as soon as possible.

I had to explain that my ‘shed hours’ are part-time and that I would do my best, but that I would make sure the (assuming I could fix it) it would be returned soon, as good as new. I know how to set myself up (eek).

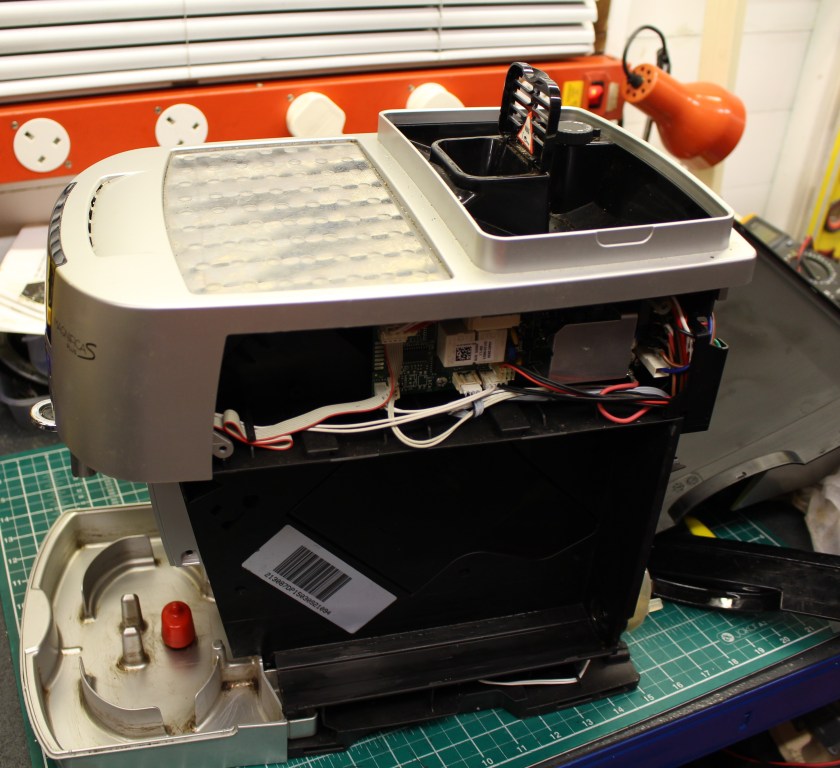

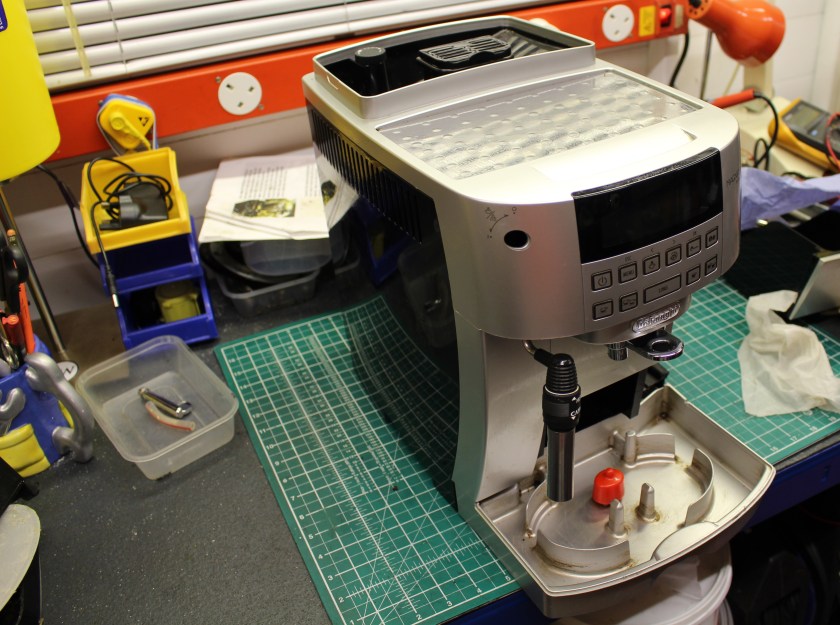

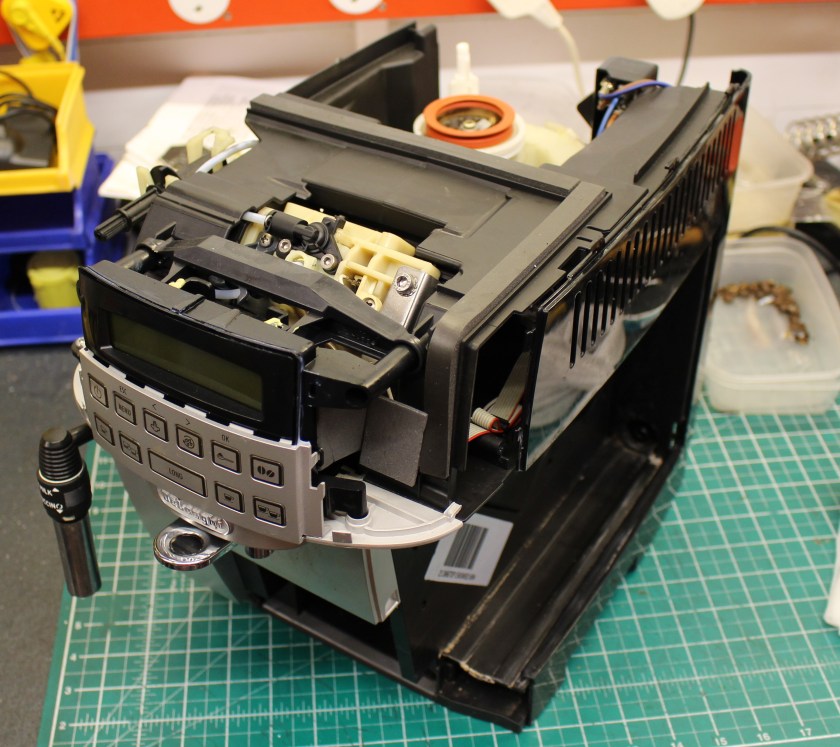

Appliances like this have lots of ‘vanity’ panels, pieces of trim and general niceties that ‘clip in to place’ without a separate mechanical fixing like a screw. When dismantling, it’s often these parts which take the longest to remove since there are rarely any notes available out there. It’s often the lion’s share of the overall repair time. You just have to go slow and take things easy. That moment when a small plastic tang or lug goes snap is heartbreaking.

Luckily here, the DeLonghi designers had some foresight and the product came apart with care, albeit with some hairy moments.

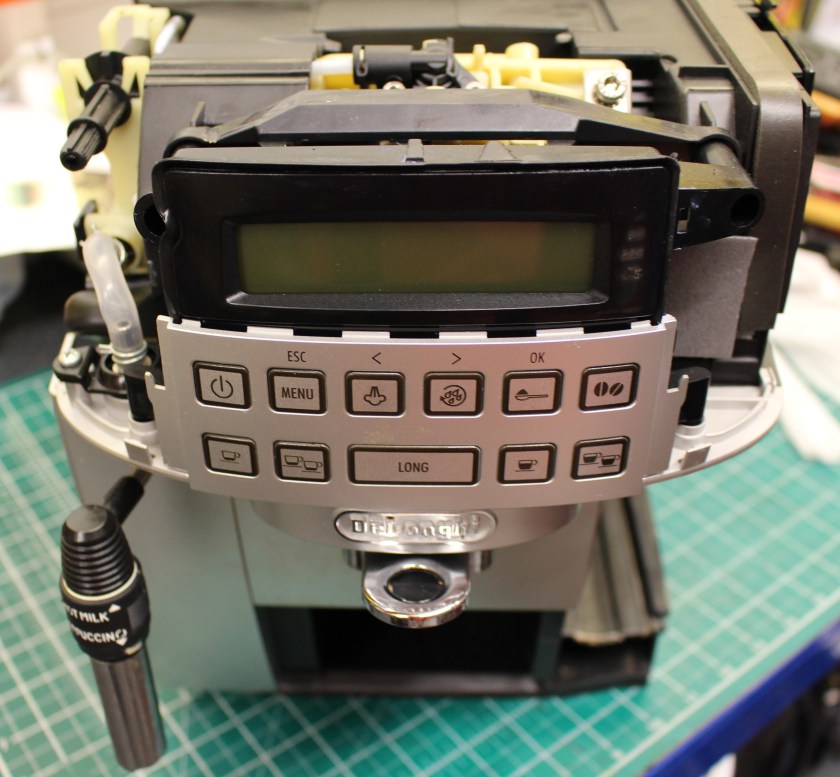

A water leak had been reported to be coming from the front of the machine during operation. With so many pipes in the machine, the source of the leak could have been anywhere, but fortunately the cause was soon identified. A small silicone (high temperature) hose had ruptured from the boiler valve area to the milk frother wand. Although it wasn’t always in use on every occasion, the pipe’s rupture seemed to be causing a consistent leak with any coffee brew operation. All other areas of the machine seemed dry. With a Chinese original supplier of coffee machine silicone pipe on eBay coming to the rescue, the part I needed was delivered in a week for under £5.00. Result.

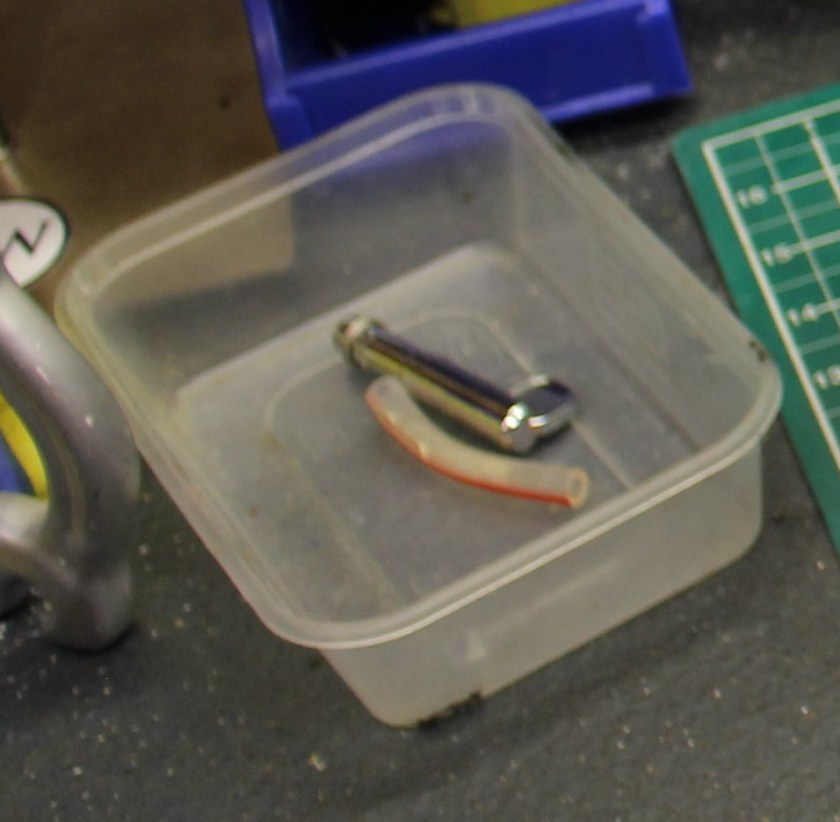

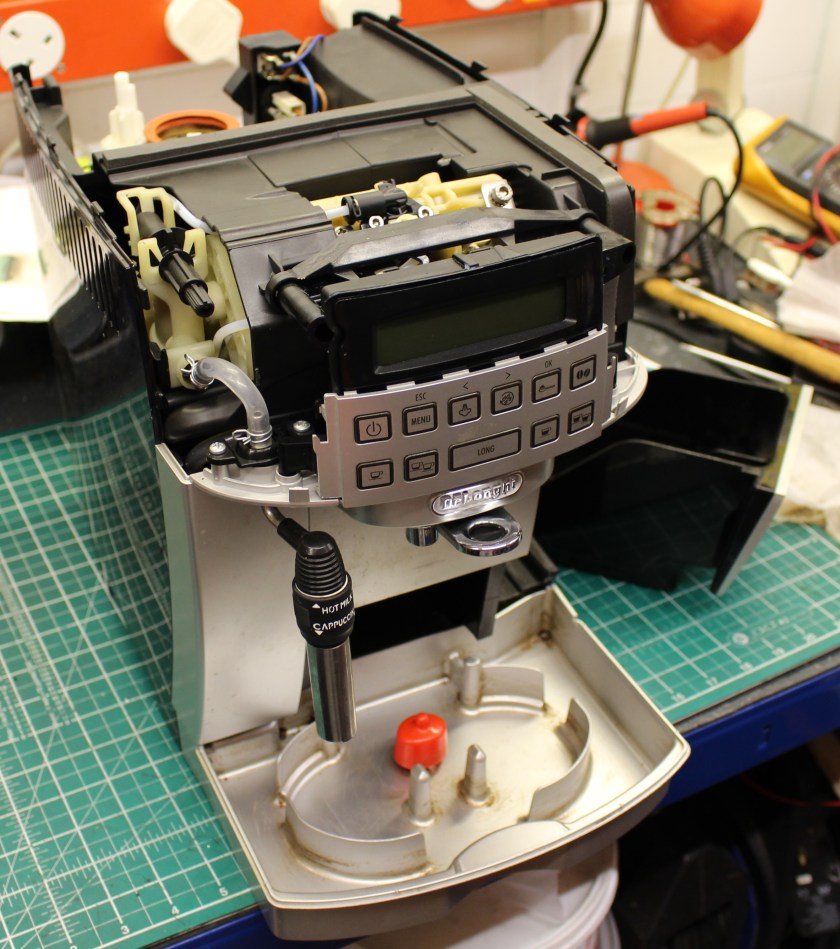

The old hose simply came off by temporarily unclipping the metal spring clips at each end. The new pipe simply clipped into place, with a little attention paid to length, so that no pinch-points occurred.

Back to my original point about ‘complication’. I’d ‘got away with it’ on this repair, there’s no getting away from it. A small silicone hose was an easy fix, with just the overall repair made complicated by the machine’s packaging.

If a valve or plastic water vessel had failed, I suspect that the repair wouldn’t have been possible. As another part-time hobby, I source repair items from all over the world (insert environmental case study here!) and it’s usually tricky to get parts like that, if they’re available at all. When repairing, I use a mix of second-hand, generic and original equipment to achieve a balance of quality, cost-effectiveness and minimal environmental damage. It’s not easy. The problem for repair agents is that it takes time to work all of that out before the repair begins…it’s a constant dilema and blog article for another day.

When doing a job like this, it makes sense to make sure that all things that can’t be cleaned easily when assembled are inspected and washed as required.

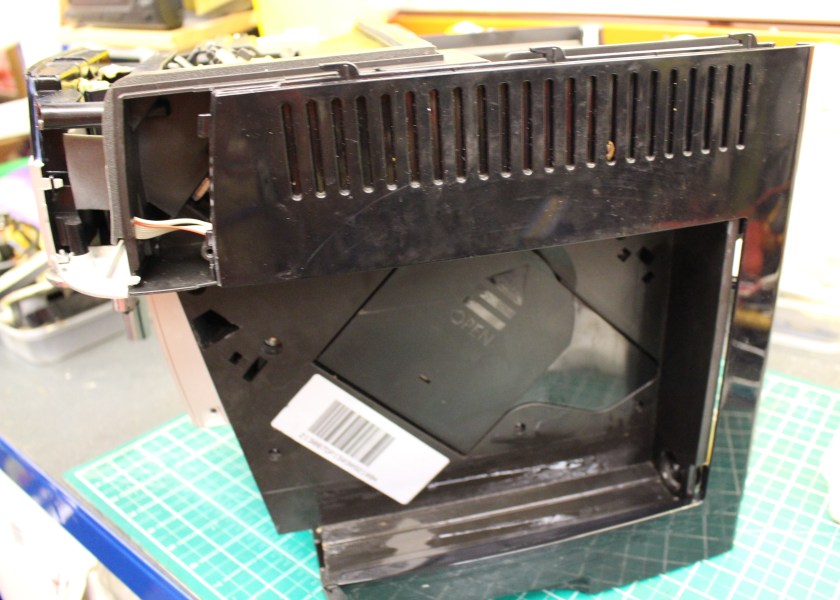

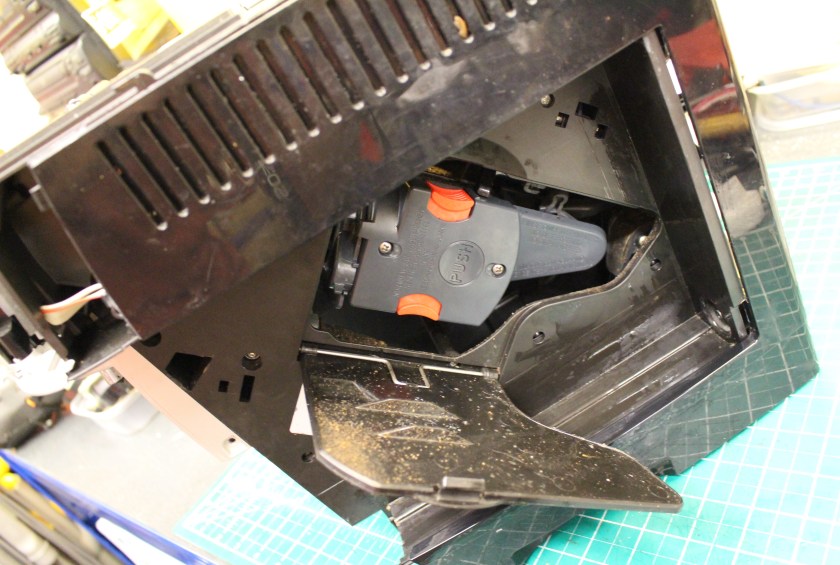

The coffee group head was one such item. While it is possible to service this item with the machine fully assembled, it’s easier to clean it when it isn’t. I hope that the owner noticed a boost in coffee strength as many of the small water holes in the group head were blocked. Of course, I made sure that everything else was ship-shape too before reassembly.

After reattaching all of the appliance’s panels, it was time to give the machine a portable appliance test (PAT) and brew-up. A sucessful repair for small beans.

Swan tea urn off the boil

A cheap fix gets this essential tea making machine back in business…

I admit it. I do get some satisfaction when I divert an appliance, on a journey to the bin, to my workshop for repair.  I have been known to collect the odd item from skips or just dumped on the pavement while supposed to be doing something more productive. I think I just feel sorry for things. Weird, but true.

Make and model: Swan Hot Water Tea 20L Urn

Fault reported: Not staying hot

Cost of replacement: £80ish

Manufacturer support:  3/10

Cost of parts: £1.70

Hours spent on repair: 45 minutes

Tools needed: Screwdrivers, test meter etc

Sundry items: Cleaning materials, heat transfer solution

Repair difficulty: 2/10

Cups of tea: X1

Biscuits: Malted Milk X1

This Swan hot water tea urn was one of those items.  Spotted during an office reorganisation in the ‘scrap pile’, it had been put there as it wasn’t working properly and a new one had now been ordered.

IMG_20200621_214203

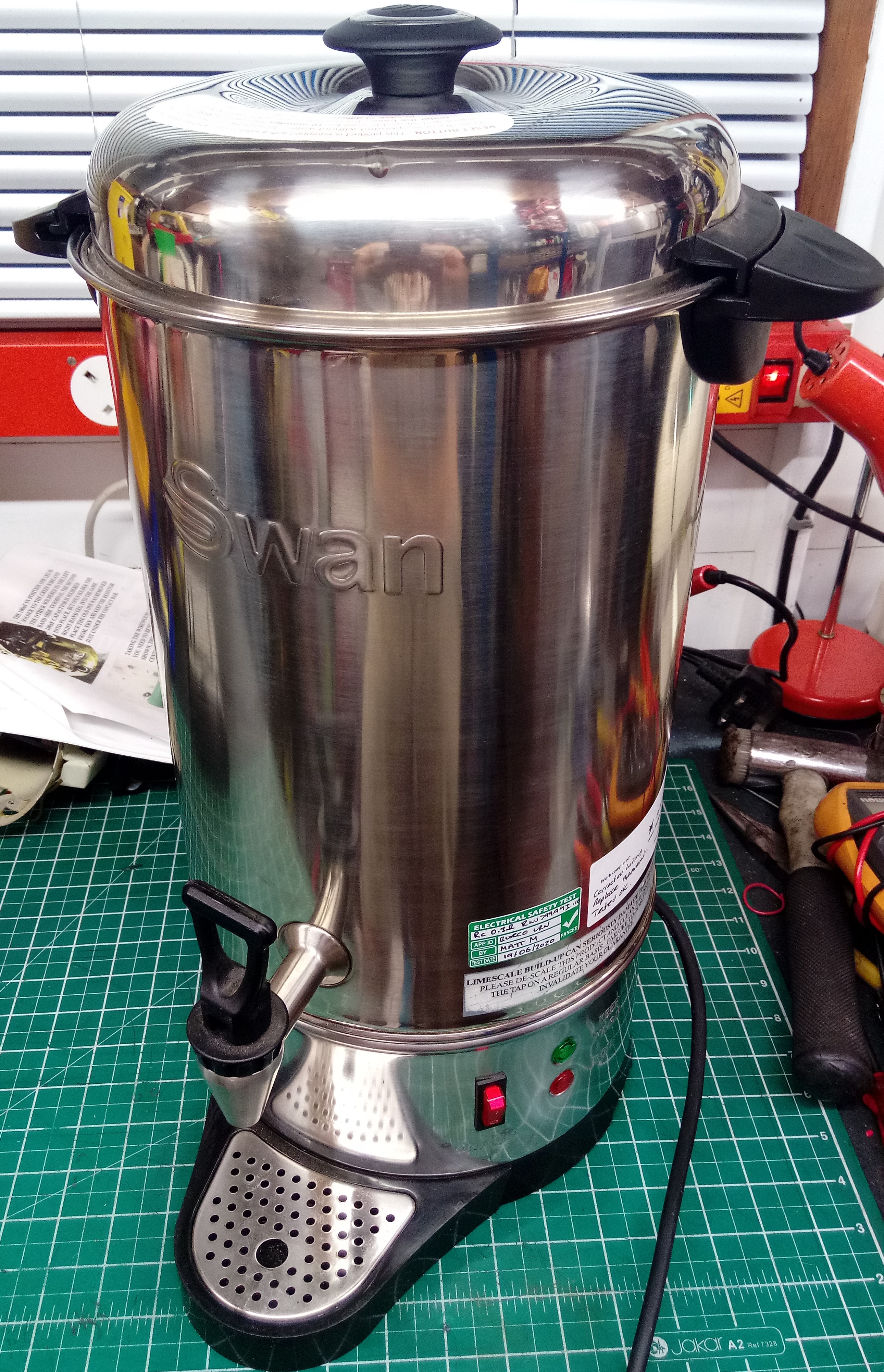

FixItWorkshop, Worthing, July’20, Swan Hot Water Urn… shiny!



Being fairly light-fingered, I spirited the urn away to the workshop for some tinker time.  Not strictly staff policy, but you know, seek forgiveness after etc.

An urn is really just a big kettle.  This one has an all metal 20 litre tank with bar-style tap to brew up, when needed.  There are no real controls as such; just an on/off switch with neon light and two tell-tail lights to indicate boil and keep warm.  Keep warm is usually on all the time when switched on.

The fault seemed to be that the urn reached boiling temperature when switched on, but then switched off totally, allowing the water to cool again excessively.  Timing the switching intervals of the thermostat, 20 minutes or so, and a 15-200 hysteresis confirmed a fault. There was also no ‘keep warm’ green light on, when in use.  To push the thermostat further, I poured cold water into the urn to see if that sped up switching between hot and cold, it didn’t.

Opening up the urn’s base involved just three screws, allowing access to all components.  Such a nice change to not have layers of covers and things to move out of the way first!

Checking the wiring out for logic revealed that someone had been here before! The wiring was incorrect and the ‘keep hot’ element was not wired up correctly and effectively not in circuit with the power source. A small wiring change corrected this and meant that the ‘keep warm’ element was now working again.

The thermal reset fuse/ button seemed to be working OK- proved with a test meter and the thermostat did seem to switch on and off, albeit with excessive hysteresis.  Time to fit another one! Luckily, these thermostats are very common and I managed to get one from eBay, rated at 1000 (a couple of degrees over the one fitted) for less than £2. Fitting a new thermostat only involved a couple of screws, a light smear of heat transfer solution and reconnecting back into the wiring harness.

This slideshow requires JavaScript.

With all wiring back in place and the cover refitted, it was time to test and brew up.  This time, the urn boiled, switched off and then stayed warm on the secondary ‘keep warm’ circuit.  To prove that the new thermostat was an improvement, I then topped up the urn with cold water and within 5 seconds, the thermostat clicked in and the boiling process started again.

Time for a brew.

(PS, the urn has now returned to its normal place of work)

Repair, kettles and er, the Citroen 2CV

Less is usually more. Simpler devices can mean repair is more likely in the event of failure.

I keep a model of a Citroen 2CV car on my desk at work.  It’s about 30-odd years old and it’s a bit battered due to an incident involving a shelf, my old cat and an 8ft drop, but that’s another story.

IMG_20200704_122535
FixItWorkshop, Worthing, July’20, The 2CV (AZ series)

The 2CV is there to remind me to keep things simple, to the point.

To me (and many others) the 2CV represents pure function over form.  Nothing on the car is superfluous to its function as a capable load lugging, robust, ever-repairable and frugal vehicle. I have a soft spot for these cars. They encapsulate the phrase ‘less is more’.

Not every story from the workshop is rosy and my heart usually sinks when I receive something to fix that has tiny printed circuit boards fitted inside that do ‘something’ and nothing at the same time.

What the Tin Snail do I mean by that? Many appliances and machines manufactured in the last 20 years or so often contain ‘mini’ circuits that control ‘something’.

Take an electric kettle, something that most people have in their homes. Kettles generally are a water holding vessel, a heating system, and an on/off switch with a boiling water state detecting negative feedback loop (it switches off by itself when the water boils).  There’s also some wire and stuff.

Electric kettles haven’t really changed that much over the years, after all the basic need hasn’t changed:  You put water in, you switch it on, you get hot water to make a drink. Nothing has changed. However, many offered these days are fitted with things like filters, LED lighting and other electronic temperature control systems with bells on.

Trouble is, all these (kettle) gadgets tend to be controlled by a small circuit board which isn’t repairable or even replaceable. It only takes an accidental water spill, some static electricity or bump mishap and that tiny circuitry is toast.  Not even a professional circuit repair agent, let along home spanner wielder would have a chance of repairing the broken circuit. When failure occurs, many will just discard the appliance and go and buy another one, quickly. Who wants to be without tea or coffee?!

The tragedy is that the rest of the (kettle in this case) appliance is, nine times out of ten, OK and if it was made with more traditional components that one could see with the naked eye, the appliance would stand far more chance of being repaired easily and economically. Something to think about, next time you’re considering a new purchase.







Dinner will be served in a flash…

A Tulip A350T Electric Rice Cooker is repaired

IMG_2609

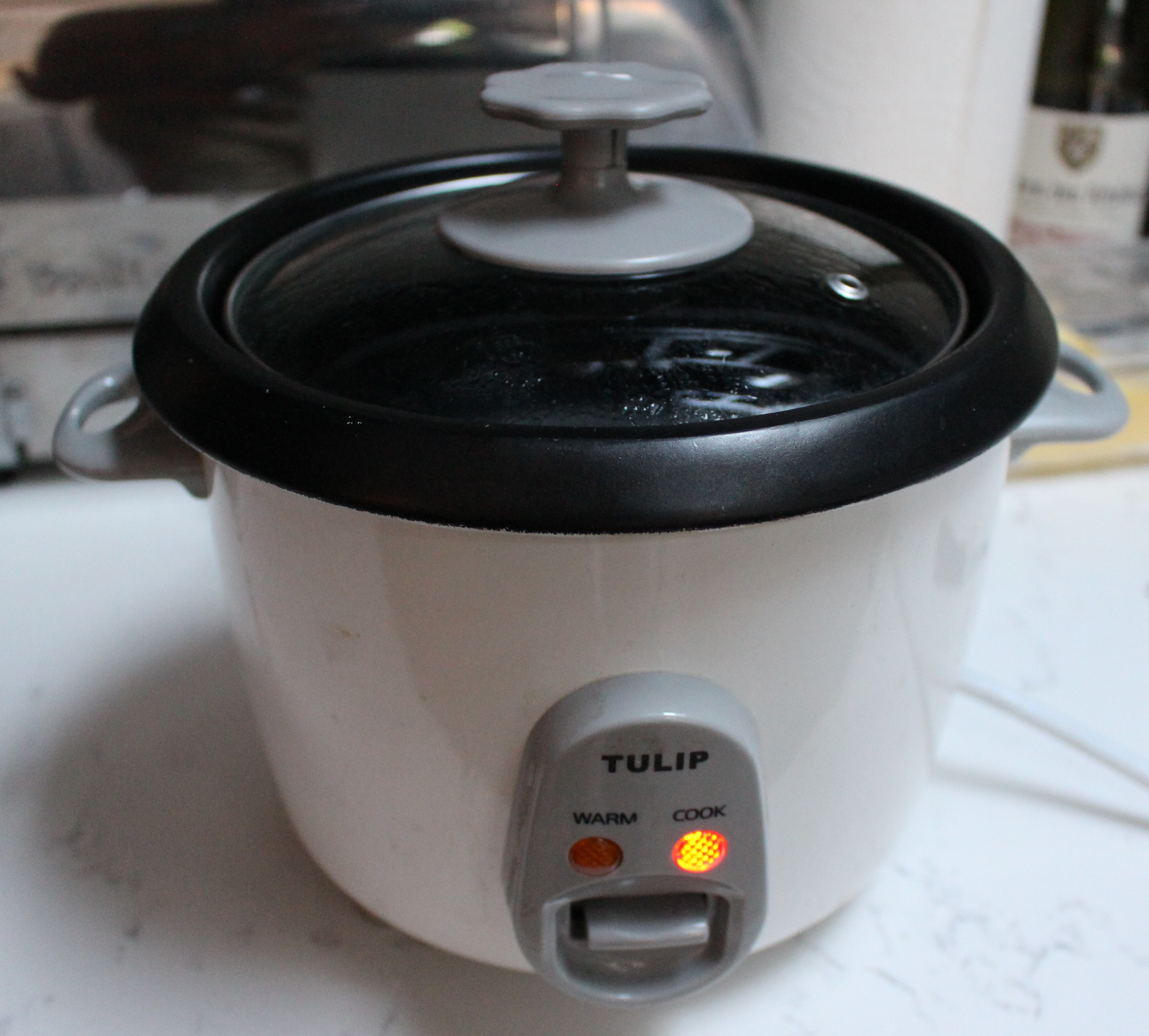

FixItWorkshop, Worthing, June’20, Tulip A350T 12Y1EI (to be exact).

I particularly enjoy receiving something to fix that I’ve never come across before.  Indeed, I’d never used an electric rice cooker, let alone heard of Tulip, the manufacturer of this example.  To be frank, I haven’t often thought about the popularity of electric rice cookers in general as an additional labour-saving device in the kitchen.  Clearly, I must be slipping.

This actual machine was a family treasure, which had moved around a bit and had originally been purchased in Holland and had since been converted from using a standard Euro plug to IEC/ kettle UK mains plug at some point.  All very interesting you say (maybe), but how did it end up in my workshop?

Make and model: Tulip A350T Electric Rice Cooker

Fault reported: Not working

Cost of replacement: £30

Manufacturer support:  0/10

Cost of parts: £2.00

Hours spent on repair: 1 hour

Tools needed: Screwdrivers, test meter, heat shrink, looped crimps etc

Sundry items: Cleaning materials

Repair difficulty: 3/10

Cups of tea: 2

Biscuits: Custard Cream X 2

After many years of reliable service, poor old ‘Tulip’ decided it had had enough of boiling up pilau rice and assorted vegetables and conked out.  When the owner tried to switch the cooker on, nothing happened, no light, no heat, no hope.

Most people would then usually have thrown in the towel, reached for their phone and within a couple of clicks, bought a new one on Amazon to be delivered the next day.

Perhaps it was the thought of poor old Tulip being crushed in the scrap metal pile at the tip which made the owner go online and find my website of strange domestic appliance tales instead of Amazon*…  But I’m glad they did.  *other online electrical retailers are available!

The machine is basically a large kettle with a removable bowl that holds whatever you wish to cook.  It has a thermostat for temperature regulation, a switch to change modes (cook/warm) and a safety cut-out mechanism, should something go wrong.  It was this safety system which had operated and caused the machine to fail-safe.

The design of the machine is quite simple, dare I say crude in places.  Within a few minutes, I had removed the base, exposing the wiring, switch, thermostat and other gubbins.

The earth bonding cable had melted which was the first alarm bell to ring.  Digging a little closer, the main issue revealed itself.  The heat-proof insulation on the ‘over heat’ one-shot thermal fuse had shorted out via a cracked piece of wiring on the metal casing of the unit.  Surprisingly, this had not overloaded the main plug fuse, but had heated the thermal fuse and had blown that instead.  Flash-bang, kaput.

The cooker’s switch, thermostat, element and other wiring checked out OK, so it was now worth fixing the failed system.

After purchasing a suitable replacement thermal fuse for a couple of quid, I set about installing this in place of the failed one, taking the time to upgrade the wiring harness with heat shrink to avoid a short again in future.  I removed the damaged earth and replaced it with fresh wire, securing it on to a better earth-bonded location and after some careful wire re-routing and fettling, the base of the machine was ready to be re-attached, ready for testing.  With the cooking bowl full of water and power applied, the ‘cook’ light lit up and the machine started to work.  Utter joy.  After a few cycles of heating and warming, I was satisfied that my work was done.

This slideshow requires JavaScript.

Even though this device wasn’t marked as such, it’s a metal bodied Class One device here in the UK and ideally required a thorough integrety test of the safety system.  Using my newly-acquired Megger PAT150 tester, I was able to prove that the machine was compliant with current UK legislation for Portable Appliance Testing.  Ricely done.







More power please

Does your toy have enough energy?

IMG_20200304_211145
FixItWorkshop, Worthing, March’20, testing a battery (featuring my retro BT multimeter).

I’m not a fan of batteries. They run out and always when you least expect it.

You know that anything with a battery, will need attention at some point.

Batteries either need to be replaced or better, recharged.

But often, replacement batteries are the only option for toys, which can mean high running costs. Especially when the toy is played with continually by an enthusiastic child owner!

Trouble is, a mixture of built-in obsolescence and poor design means that it’s just not obvious how one replaces duff batteries meaning that, I suspect, lots of toys get thrown away needlessly, but it’s not the owners fault necessarily.

Sadly, some replacement batteries cost more than the toy itself, which is just mad.

Make and model: toy radio control car (no brand or model)

Fault reported: Not working

Cost of replacement: £10ish

Manufacturer support:  0/10

Cost of parts: £5 (batteries)

Hours spent on repair: 30 minutes

Tools needed: Screwdrivers, test meter etc

Sundry items: None

Repair difficulty: 0/10

Cups of tea: 1/2 cup

Biscuits: None

This slideshow requires JavaScript.

The owner of this toy had played with it non-stop wearing the batteries out.  Mum and dad had replaced some of the batteries in the car part of this toy, but still the toy didn’t work.  It wasn’t clear to the parents, which batteries in what part of the toy needed to be replaced, which meant that an email asking for help, popped in to my inbox.

At first glance, the car part of the toy had no battery cover or compartment, but on closer inspection, the car separated in to two halves, allowing access to the 4 X AA (1.5V) batteries.  Not a straightforward task for everyone.  Testing each battery revealed that they were all worn with an average of 1.3 volts (much lower under load) each.  I replaced these with fresh ones and put the car back together.  The car’s casing was simply held together with a clip and a couple of small screws.

However, the toy still wasn’t working, time to test the radio controller.  Again, a screwdriver was needed to open the battery compartment to access the battery.  Not all households have screwdrivers (even though I believe they should!).

Testing the 9V PP3/ 6LR61 battery revealed around 3 volts, 6 volts too low.  Again, a new battery got the radio controller working once more.

Doing this ‘repair’ got me thinking.  Batteries can be tricky things to manage.  New ones can go flat when not in use and old ones that have been kicking around in a drawer for a while can be fine to use.  One can replace batteries with ‘new’ ones which are no better than the ones fitted, leading a user to believe that the ‘thing’ must be faulty.  A false positive.

With a little basic training on multimeter use, hours and cash can be saved by testing pesky batteries.  At under £5 for a basic multimeter, it could be money well saved for any household.  Just a thought.

With both car and radio controller switched on, the toy sprung to life.  Of course, I had to test the car thoroughly before handing it back(!).



Magic Lamp

Rub the lamp release the genie, make three wishes (make ’em good)

IMG_20200206_210036

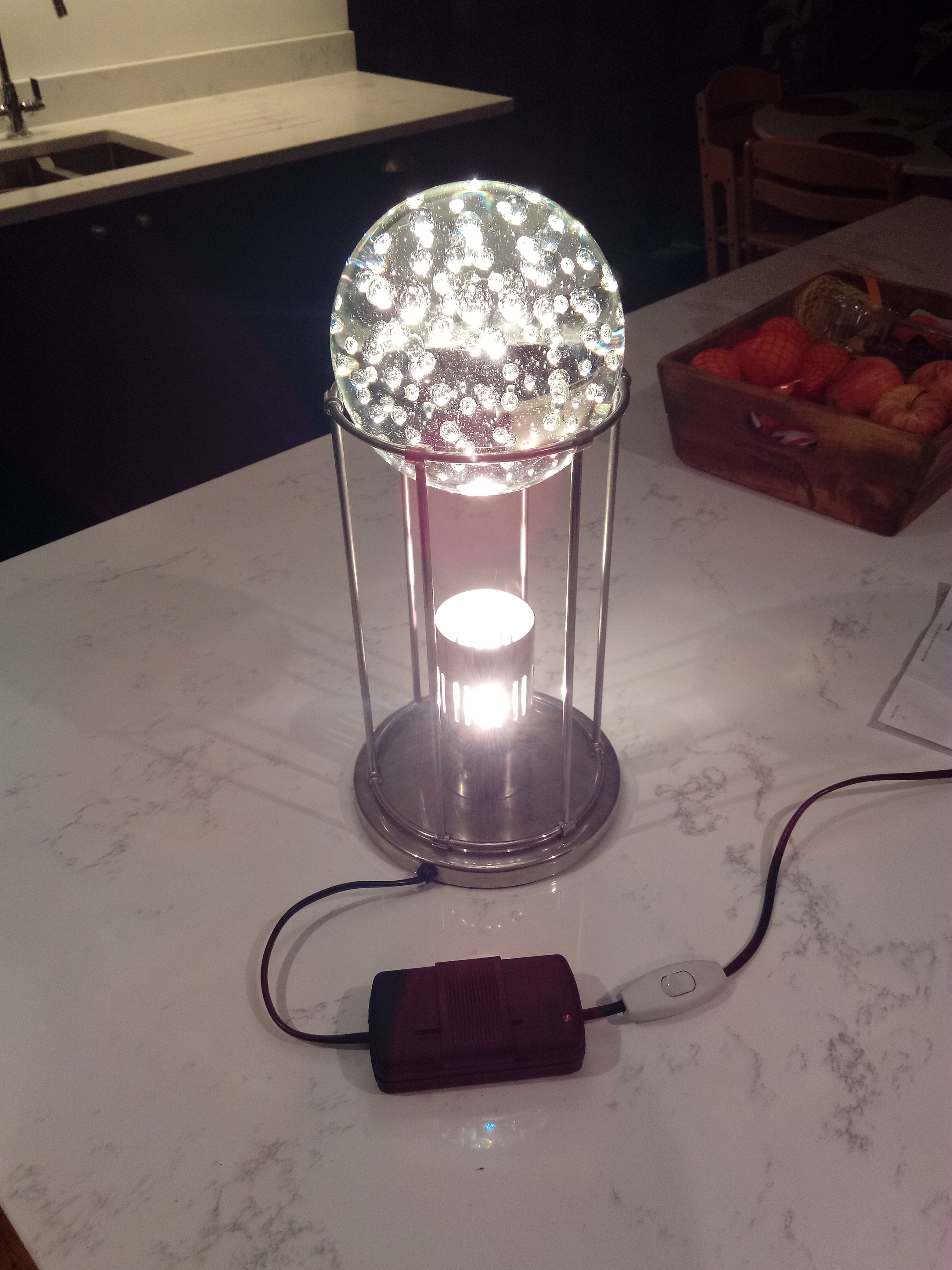

FixItWorkshop, Worthing, March’20, Dimmable Projector Lamp

I’d say that 8 out of 10 repairs commissioned by folk who get in touch are for sentimental reasons.  Take this unusual lamp.  It’s not worth a great deal of cash, it doesn’t use the latest luminescence technology and it doesn’t even have a makers’ mark (we think it came from Aldi or Lidl).

Yet, it had been a family favourite for years and the owners were keen to see it light their world, once more.

Make and model: Dimmable ‘projector ball’ lamp

Fault reported: Not working

Cost of replacement: £30ish

Manufacturer support:  0/10

Cost of parts: £15.30 plus £3.25 for bulb

Hours spent on repair: 1 hour

Tools needed: Spanner, screwdrivers, test meter etc

Sundry items: None

Repair difficulty: 2/10

Cups of tea: 2

Biscuits: 1 Gold Bar

Firstly, we all make mistakes and here’s one of mine!

It’s easy to fall into traps or ‘snap diagnosis’ when doing a repair and I want to share a ‘little accident’ that I had with this one.  Even an experienced repair bloke can make mistakes.

Here goes.

After checking the mains plug (all fine) and cable to the lamp for continuity and potential shorts to earth, I was convinced that the supply lead was fine.  All good so far.

Next, I checked continuity from the dimmer module to the lamp socket.  Ah ha, that’s the problem, that link in the circuit is dead.  A quick repair job, on to the next?  Not quite.

As a temporary test, I decided to by-pass the dimmer and rig a temporary wire to the lamp, to prove the wiring was OK and that the dimmer was the fault.  Upon plugging the mains plug in, the bulb nearly exploded.  Bang!  My safety circuit breakers then stopped the power to the whole workshop.  I was now in darkness, but luckily, my heart was still ticking.

I had failed to realise that the dimmer on this light was actually doing two jobs; dimming the lamp as well as stepping down from the (UK) mains 240VAC supply to a safer 12VAC operating power.  I had connected 240 Volts to a 12 Volt bulb!  What a simple mistake to make.  If I had simply inspected the dimmer more closely, I would have realised this.  The original sticker and badges on this lamp had long disappeared.  An important lesson, relearned.  Time for a cup of tea and a biscuit.

The repair.

With the power back on, it was time to see what the original dimmer was doing.  Not much as it turned out and due to the tininess of the dimmer’s components and build type, I was unable to say why it had failed.  I suspect that one of the power sink control components (maybe a Zenner diode) had failed, causing an overload to the onboard one-time blow fuse.  However, that’s just an unproven theory.  The fact was that I now needed a replacement dimmer with step-down 240/12VAC capability.

This slideshow requires JavaScript.

It turns out that only a couple of manufacturers make such a dimmer module and I chose one made by Relco as it seemed to match the original specification quite well.  It would have been tempting to convert the lamp to mains power and just fit a simple on/off switch, but I’m not keen on this as technically, the lamp would need to be re-subjected to British/ EN Standards, not something I was prepared to do.  Unless impossible otherwise, all kit leaving the workshop must be original specification or better.

With a new (correct) dimmer wired-in and replacement MR11 bulb fitted, the lamp came to life once more.  I’d also fitted a proper mains on/off switch, since the replacement dimmer did not have one.  The new switch would isolate the flow of power to the whole thing when not in use, hopefully prolonging the life of the dimmer module.

The owners of this lamp were very pleased to have it back as they had missed the lovely light patterns it projected on to their ceiling.

Hooray for Henry!

A Numatic Henry vacuum cleaner gets the kiss of life…

IMG_1545
FixItWorkshop, Worthing, March’20, Numatic ‘Henry’ vacuum cleaner HVA200a (to be exact).

There are times when only no-nonsense suck will do.  Other vacuum cleaners offer the moon on a stick, but rarely live up to the repeated abuse of everyday life.  Henry on the other hand is tough, no-nonsense and above all, reliable.

Reviewers of this kind of thing, seem to agree.

Make and model: Numatic International ‘Henry’ vacuum cleaner HVA200a

Fault reported: Dead/ not running

Cost of replacement: About £130, give or take

Cost of parts: £17.25

Hours spent on repair: 1

Tools needed: Cleaning tools/ cross-head screwdriver

Sundry items: Silicone spray/ cleaning rags

Repair difficulty: 2/10

Cups of tea: 1

Biscuits: 1 bourbon, I think

I have friends in trades who will only buy and use Henry ‘hoovers’ as they last, always work and are easy to use. And above all, who doesn’t like an appliance with a smiley face?

The example in the picture above had been used by a local Worthing taxi driver everyday for the last 15 years without any problems and was in pretty good nick.  The filter was clean and apart from some wear and tear scratches, still looked like the current model.

One day, Henry failed to switch on and after the owner had checked the fuse in the plug, he decided to get in touch with the workshop.

IMG_1546
FixItWorkshop, Worthing, March’20, Henry’s on switch.

The HVA200a has two speed settings, one at 600 Watts power and one at 1200 Watts power, selectable by a red switch and indicated in a red tell-tail lamp.  When plugged in, nothing was happening.

Time to perform surgery.

Opening up Henry’s casing was straightforward and top marks to the designers for creating sensible parts that fit together logically.  Henry is designed to last and be repaired.  All very pleasing.

This slideshow requires JavaScript.

With the lid removed, all electrical checks were made from the plug to the end of the flex, down to the motor.  The flex was in good condition with no snags, shorts or earth faults.  The cable winder on this model is a simple handle operating spindle and was a bit sticky.  The contacts inside the gubbins were also tarnished, so while it was all in pieces, I decided to clean all of the electrical contacts with cleaner and make sure all the sliding parts of the cable winder were clean and had a small dab of silicone spray for smoothness.

Testing for current around the circuit revealed that the speed control board was where things stopped.  The speed control board was dead and required replacing.

To prove this fact, I was able to temporarily by-pass the controller and connect the mains switch to the motor, which revealed that the motor was strong.

A quick bit of shopping with my favourite parts suppliers yielded a replacement (updated) speed control PCB for under £20, which seemed like good value to me.  After making a note of the wiring (see slideshow), the new PCB was connected up, the casing back together and Henry was ready to run, once more.

I also decided to give Henry a little polish too, just because.





Wheezy Dyson DC19

Another Dyson not biting the dust, just yet.

A mate asked if it was worth saving his abused Dyson cylinder vacuum cleaner which has been residing in the garage for a couple of years, in the dark, unused. It had last seen service when clearing-up building dust and allsorts of non-domestic detritus and that abuse had now given the vacuum cleaner breathing difficulties. A vacuum with breathing issues means no suction.

IMG_0937
FixItWorkshop, Worthing, January 2020, Dyson DC19.

Interestingly, the reason the Dyson was being called out of retirement was due to a lack of performance from the family’s more recently purchased battery machine. Hopefully I’ll get to see that in the workshop soon as well. I’m getting ahead of myself already.

Make and model: Dyson DC19 (grey and purple)

Fault reported: 70% reduction in suck

Cost of replacement: About £200

Cost of parts: £9.54

Hours spent on repair: 1

Tools needed: Cleaning tools

Sundry items: Silicone spray

Repair difficulty: 1/10

Cups of tea: 1

Biscuits: 2 (M&S Belgium Selection)

This slideshow requires JavaScript.

Like many abandoned vacuum cleaners I see in the workshop or at the tip, there really wasn’t much wrong or really broken, yet its owner was considering its future. What to do. I’ll write about readiness to repair and repair inertia another time!

The repair in stages:

  • Remove, clean (and replace) filters and refit once dry (48 hours)
  • Remove collection cylinder and clean thoroughly and refit once dry (48 hours)
  • Clean all seals with soap and water, dress with silicone to revive
  • Check by-pass valve and clean as needed
  • Check power cable (clean to improve flex rewind system)
  • Check and clean roller brush head
  • Test!

The filters on this machine were so dirty that I decided to invest in a new set which, at under £10, seemed good value and will certainly extend the life of the DC19.

After giving the main unit a good polish the Dyson DC19 was ready to go home to clean-up. Another Dyson not biting the dust, just yet.
