Bagpuss, oh, Bagpuss, oh, flat battery cat puss…

A much loved soft toy gets new (apparently non-replaceable) batteries…

For a change, this one’s just for me. I don’t often write-up repairs on my own items, but I couldn’t resist dedicating a few words to our beloved Bagpuss soft toy. He’s been around in the family for a good few years and when my youngest daughter decided to dust him down and make his voice work, I wasn’t surprised when no noise came out. Our Bagpuss has an electronic voice box which is activated with a gentle squeeze around the belly. After many years and many hugs, the batteries had gone kaput.

I grew up in the 1980s and remember watching Bagpuss on BBC1. I must have been about four I guess. Bagpuss lived in a shop window, a shop that was owned by a child, a shop that didn’t sell anything. Emily, the shop owner, would bring Bagpuss and friends broken objects to restore and explore. The story would begin once Emily had left and Bagpuss woke up…

Well, this Bagpuss wasn’t waking up anytime soon and to make matters worse, the batteries within appeared to be non-replaceable. Well, that’s not very good is it? So, in the spirit of the original TV program, I decided to take an unpicker tool to the cat and carefully dismantle his seams…See how I get on.

Make and model: Bagpuss talking toy

Fault reported: No talking, no sound

Cost of replacement machine: £10.00 if you can find one

Manufacturer support (in the UK): 0/10

Cost of parts (for this repair): £1.00

My time spent on the repair: 1 hour

Tools needed: Needle and thread, small flat screwdriver

Sundry items: None

Cleaning materials: Contact cleaner

Repair difficulty: 2/10

Beverages: 1 tea (as usual)

Biscuits consumed: No biscuits, just a slice of chocolate cake (I think)

There’s always that moment with a fix like this when you think; shall I just leave it as it is? I mean, it was still a loved toy right? But as my regular reader will know, that’s not quite how we do things in the workshop. Things must work correctly and if there’s a reasonable chance of success, then the repair must go on.

So, here it goes.

I knew that this Bagpuss ran on batteries, but had no battery compartment to gain access etc. He’s a soft toy, made from a mixture of polyester and cotton fabric, which is all neatly stitched together. All I could do is roughly locate the sound box within his chest and neck area and then chose a suitable seam to unpick, in the hope that it would allow me some access to the box without causing too much damage.

Using a standard stitch un-picker tool, I was able to gently cut into the neck and part of the chest area which gave me access to a small red and black smooth polyester bag, which contained the voice box. At this point, I was starting to feel a bit sick, I mean, what had I done!?

Moving on, the voice box just slide out of the red and black bag and from then on in, it was standard toy-fare. The plastic voice box had a switch on one side and a battery compartment on the other side, all perfectly normal. The battery door was held in place with a small screw and once removed, revealed three LR41 coin cell batteries. Very normal stuff, nothing non-replaceable here.

Luckily, I had some spare batteries in stock and with a little contact cleaner applied to the slightly tarnished battery contacts and the new cells fitted, Bagpuss’ voice was heard for the first time in ages.

Now it was just a case of putting the voice box back in the right place, so that the switch to make the sound work could be reached easily. Once that was done, it was just a case of carefully re-stitching the neck and chest bag together using white cotton thread and lots of neat tack-stitches that would be invisible, once tight.

After a few minutes of finger-pricking sewing, Bagpuss’ head was back on and it was time for a squeeze…

See what you think.

When a label or someone tells you that a battery cannot be replaced, ignore it and try anyway.

Once Bagpuss was back together, I couldn’t help but wonder why the manufacturer hadn’t fitted a hidden zip to allow simpler battery replacement. Perhaps it’s got something to do with safety standards. Who knows. What I do know is that Bagpuss isn’t alone, and I suspect that many toys like this are discarded needlessly each year due to short-term, lazy design.

A KitchenAid struggling to make dough!

A KitchenAid 5K45SS gets a light overhaul and a replacement worm gear assembly to restore it to its former glory.

My regular reader might gasp in horror to learn that this time on ‘Diary of a Tinkerer’, I’m writing about the opposition. What? Uh?

Yes, I’m writing about a KitchenAid stand mixer and not a Kenwood Chef for a change. Are these things all the same? Well, I guess that the model you see below does a similar job and has a wide range of accessories, making it extremely versatile, like a Chef. However, the overall package is different and while the Chef has gently evolved over 70-odd years in production, the original KitchenAid remains closer in function and form to its original design. That’s not to say that a KitchenAid bought today is the same as one bought 50 years ago, far from it. New models benefit from modern motors and modern manufacturing processes, but it’s all packaged with a retro-feel. I’m not a fan of retro-stylised items as they’re often not as good as the original. However, the KitchenAid is different as it’s truly original, well-made and not just playing at it.

KitchenAid stand mixers have been around for over 100 years and the basic design has its origins in the US with the Hobart Company. The KitchenAid brand is now owned by the Whirlpool Corporation, and current models feature robust construction and hard wearing finishes ensuring long-service. KitchenAid machines are durable, stylish and available in a wide selection of colours.

Now, I know what you’re thinking; Do I prefer the Kenwood Chef or my new American friend, the KitchenAid? Well it’s hard to say. I love the construction and the sound industrial design of older Chefs, and it must be said that recently made models have lost some of that robustness with the use of overcomplicated electronics and gimmicky LED lighting.

Over the years in production, KitchenAid machines have retained a ‘function over form’ approach and appearances have changed little. KitchenAids are simple to operate, durable and can be repaired easily. It’s an example that ‘modern Kenwood’ and other manufacturers, could learn from.

KitchenAid’s mantra is simple; Less is more, so much so, that it’s now a design classic in its own right.

Make and model: Whirlpool Corporation KitchenAid 5K45SS

Fault reported: Rough running, noisy operation

Cost of replacement machine: £500

Manufacturer support (in the UK): 6/10

Cost of parts (for this repair): £37.98 (Worm gear assembly 240309-2)

My time spent on the repair: 2 hours

Tools needed: Screw drivers, pliers, cutters, drift for planet pin

Sundry items: Food safe grease

Cleaning materials: Silicone spray, damp cloth, cleaning spirit

Repair difficulty: 4/10

Beverages: 2 X teas

Biscuits consumed: 3 X ginger nuts

This machine you see in the photos came into the workshop with a few issues. Firstly, it needed a good clean; something that machines visiting me get whether they need it or not. I always make sure that things are polished or paintwork touched-in, if possible. It’s a little bit of OCD that’s hard to shake-off. I think I want all my customers to see what’s possible with a little-workshop love!

Cleaning over, and on to the main problem. This machine had had a hard life making lots of dough, or maybe cement, and routine use day-in day-out had taken its toll on the worm pinion gear assembly. I’m sure you’ve heard of that. In Plain English, it’s the bit that transfers the movement from the motor to the bit which drives the mixer’s blender.

The machine was rough in operation and the planet wheel (where the mixer bit attaches) was intermittent. No good for dough. No good for anything.

Due to their simple construction, dismantling just involves one cross-head screwdriver and a small drift and soft hammer. Simple stuff, no Torx screws or plastic tangs to worry about here, just traditional assembly techniques, which means that the machine can be repaired many times over a long-life, without fixings becoming loose and tired.

The worm pinion gear assembly (I hope you were paying attention) is available as a complete unit with bracket and bearing or available as seperate components. On an item like this, I prefer to replace the whole assembly as parts like this wear together. It’s personal choice at the end of the day, but sometimes, it’s a false economy to replace a spare part within a spare part, as I’ve found out to my cost, during many a previous repair.

As a side point; the worm gear on this machine can be described as a sacrificial part. The motor output is made of toughened steel, the gear that drives the mixer bits is forged steel, both hard and tough. The worm gear is made from Nylon, which is hard wearing, but less so than the other moving metal parts. If the machine is overloaded, it’s the worm gear that will fail first before the other, more expensive parts. Many manufacturers do this and it’s recognised as good engineering practice.

With the gear replaced, just a couple of screws to remove and replace, together with new (top-up) grease applied and the mixer worked well, once again.

The last job on this machine was to replace the very short flex and Euro plug fitted. This particular machine had been owned by an American couple, living in Europe but were now living in England and therefore required the correct UK specification plug. Together with the correct three-core flex, this machine was ready again to earn its keep.

Time to make a pizza I think.

DeLonghi Magnifica S Coffee Machine

Repair for small beans: A magnificent brew from the DeLonghi Magnifica S Coffee Machine

With more knobs and whistles than the Star Ship Enterprise, it’s no wonder that coffee machines like this have become very popular among coffee lovers. From the comfort of your own kitchen, you can brew-up in much the same way as a skilled barista in your local coffee shop does. With a machine like this, you will rarely ever make a mistake, since all measurements and mixes are made at the touch of a button. It’s a compelling package for the coffee nerd.

However, as we all know from school, the more complicated we make something, there’s an increased likelyhood of it going wrong at some point in the future.

I mean, they’re just so darn complicated. Don’t get me wrong, I admire the mechanical packaging and clever processes within these machines, but if just one small part of the mechanism goes wrong, the whole thing fails and the machine is then useless. And these things are not cheap.

The Magnifica S is a premium machine and Delonghi have been making these products for many years, so luckily, some parts are available for when things fall over. In my experience, DeLonghi coffee machines are of reasonable quality.

Make and model: DeLonghi Magnifica S (ECAM 22.110.SB)

Fault reported: Major leak

Cost of replacement: £330-400 when new

Manufacturer support:  5/10

Cost of parts: £1.50

My repair time: 2 hours

Tools needed: Small screwdrivers, small levers, cutters

Sundry items: Cable ties

Cleaning materials: WD-40, damp cloth, soap and water

Repair difficulty: 6/10

Cups of tea: x2

Cups of coffee: x1

Biscuits: Ginger nut x2

The owner of this machine used it everyday and upon delivering it to me for repair, was anxious to get it back soon for his daily caffeine hit as soon as possible.

I had to explain that my ‘shed hours’ are part-time and that I would do my best, but that I would make sure the (assuming I could fix it) it would be returned soon, as good as new. I know how to set myself up (eek).

Appliances like this have lots of ‘vanity’ panels, pieces of trim and general niceties that ‘clip in to place’ without a separate mechanical fixing like a screw. When dismantling, it’s often these parts which take the longest to remove since there are rarely any notes available out there. It’s often the lion’s share of the overall repair time. You just have to go slow and take things easy. That moment when a small plastic tang or lug goes snap is heartbreaking.

Luckily here, the DeLonghi designers had some foresight and the product came apart with care, albeit with some hairy moments.

A water leak had been reported to be coming from the front of the machine during operation. With so many pipes in the machine, the source of the leak could have been anywhere, but fortunately the cause was soon identified. A small silicone (high temperature) hose had ruptured from the boiler valve area to the milk frother wand. Although it wasn’t always in use on every occasion, the pipe’s rupture seemed to be causing a consistent leak with any coffee brew operation. All other areas of the machine seemed dry. With a Chinese original supplier of coffee machine silicone pipe on eBay coming to the rescue, the part I needed was delivered in a week for under £5.00. Result.

The old hose simply came off by temporarily unclipping the metal spring clips at each end. The new pipe simply clipped into place, with a little attention paid to length, so that no pinch-points occurred.

Back to my original point about ‘complication’. I’d ‘got away with it’ on this repair, there’s no getting away from it. A small silicone hose was an easy fix, with just the overall repair made complicated by the machine’s packaging.

If a valve or plastic water vessel had failed, I suspect that the repair wouldn’t have been possible. As another part-time hobby, I source repair items from all over the world (insert environmental case study here!) and it’s usually tricky to get parts like that, if they’re available at all. When repairing, I use a mix of second-hand, generic and original equipment to achieve a balance of quality, cost-effectiveness and minimal environmental damage. It’s not easy. The problem for repair agents is that it takes time to work all of that out before the repair begins…it’s a constant dilema and blog article for another day.

When doing a job like this, it makes sense to make sure that all things that can’t be cleaned easily when assembled are inspected and washed as required.

The coffee group head was one such item. While it is possible to service this item with the machine fully assembled, it’s easier to clean it when it isn’t. I hope that the owner noticed a boost in coffee strength as many of the small water holes in the group head were blocked. Of course, I made sure that everything else was ship-shape too before reassembly.

After reattaching all of the appliance’s panels, it was time to give the machine a portable appliance test (PAT) and brew-up. A sucessful repair for small beans.

That thing just eats money!

Tomy (UK) /Robie (US) Mr. Money repaired in the Workshop

I have a real soft spot for novelty toy robots that actually do something.  I think I’ll make a point of collecting more.

IMG_9795
FixItWorkshop, Worthing, August’19, Tomy/ Robie Mr. Money.

Make and model:  Tomy (Robie in U.S.) Mr. Money  children’s money box

Fault reported: Not eating money

Cost of replacement:  N/A

Cost of parts:  £0.00

Hours spent on repair:  About an hour

Tools needed:  Cleaning cloths

Sundry items: Contact cleaner

Repair difficulty:  3/10

A lady got in touch with me on the back of an article I wrote a while ago about a faulty Mr. Money toy robot money box.  My Mr. Money had gone wrong as I’d left an old battery inside which had then leaked.  A major clean-up and tinker was then required to get it working again.

This particular Mr Money belonged to the lady’s husband and was to be ‘given to him again’ as a 40th birthday present.  What a nice thought.  The only problem was that Mr. Money had stopped working long ago; put away and forgotten about.  He needed bringing back to life.  Perhaps there was a hidden message to the husband to save for something?  Who knows.

Mr_Money_Quick_Strip

Mr. Money arrived well packed at the workshop and I wasted no time in taking him apart.  There was no evidence of battery leakage or accidental Cadbury Button ingestion and he was generally in good condition with no bits broken off.  A good start.

Mr. Money is getting on a bit and when taking apart any toy, let alone one that’s over 30 years old, one must be careful not to accidently snap-off any lugs or tangs that hold things like casing and levers together.  Very tricky.  It’s not something I usually attempt after a day at work, when I’m shattered.

After some rooting around in the depths of the mechanism, I noticed that the ‘limit switch’ was a little dirty and that some of the contacts needed a little clean.  Using some fine cloth and switch cleaner, all metallic switch surfaces and battery connections were cleaned up and with a new AA battery installed, Mr. Money worked again.

Being 30 years old, there’s no silly use of electronics or other USB excesses which are, I think, ‘over used’ on modern toys.  It all adds up to something which can be repaired with basic tools and parts.

This slideshow requires JavaScript.

I carefully reassembled the workings, casing, switches, arms, head, eyes and lid.

Mr. Money was ready to feast.

After testing a couple of quid through the Mr.Money’s eating cycle, I was happy for him to start his journey home.  I hope he gets used regularly and never put away in a box again.







Generic Battery Mantel Clock

A battery clock returns to the mantel.

A friend of the family was very upset that her mantel clock had decided to stop and despite changing the battery, it refused to start ticking.

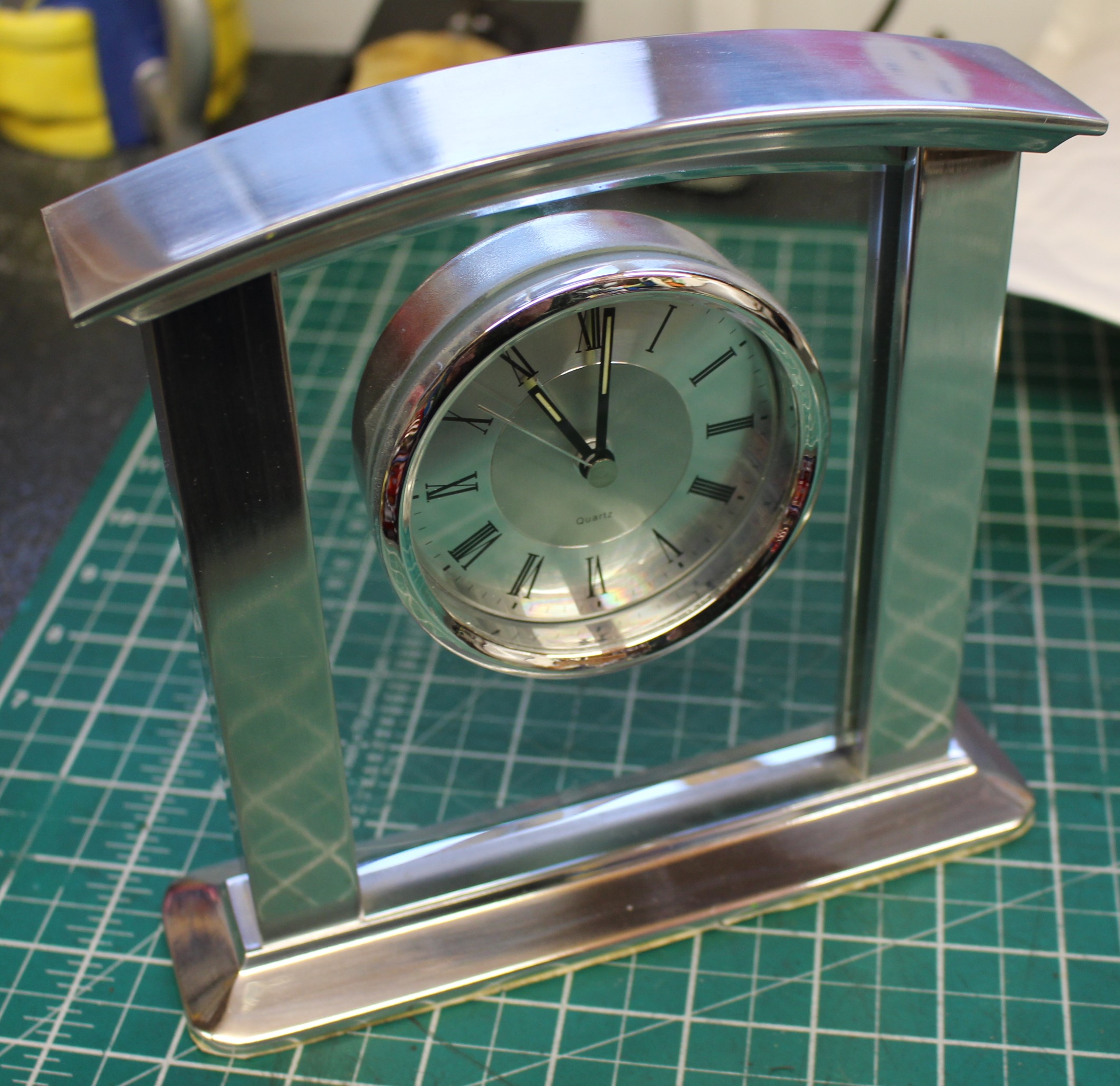

IMG_9122
FixItWorkshop, Worthing, May’19, Clock.

Now, this clock was not an expensive item, but it matched the décor of the room it was in and so the owner was very keen for it to be returned to its place above the fire.

Battery clocks like this are ubiquitous and often, like this one, don’t even carry a makers’ brand logo or name.  I was thinking; if the clock’s motor was unsavable, I would replace it using a generic replacement from eBay.

I’ve fixed many battery powered quartz clock motors.  They all work in a similar way.  An electromagnet which is pulsed using a simple circuit, regulated by a quartz crystal.  Add-in some gears and pointer hands and you’ve got yourself a clock.

After removing clock motor from the housing, just two screws, the motor comes apart by peeling back two plastic tangs.  Care should be taken not to force anything at this stage as the parts are very small and delicate.

The motor gears and electromagnet out of the way, the printed circuit board popped out and the fault became clear.  At some point in the past, I suspect that a battery had leaked just a little and the vapour from the leak had corroded the contacts.  A little dab of contact cleaner on an old toothbrush and a little bit of scrubbing and the corrosion was gone.

This slideshow requires JavaScript.

A little bit of jiggery pokery again and the motor was back together and refitted to the clock’s frame.  It just goes to show that something as simple as this can be fixed with basic tools and patience.

Job done!

Cost of replacement:  N/A.  Cost of repair:  Just 30 minutes tinker time and a cuppa.

Money, that’s what I want

A cool 1980s toy robot money box gets repaired.

Who doesn’t like a toy robot? I mean, everyone loves a toy robot, especially one with pop up eyes and one that eats coins.  No?  Well, you’re wrong if you don’t agree!

Money 2
FixItWorkshop, March’19, Tomy Mr. Money.

This is my own Tomy Mr. Money, which I’ve had since about 1988 ish, so it’s getting on a bit.  Like me.

Back then, I wasn’t that diligent about leaving batteries in situ for long periods and when I dusted off this piece of retro cool for my daughter to play with, we discovered that the passing of time had not been kind to the old battery or insides.  Which was a bit of a shame.

However, I wanted to show everyone that old toys are way cooler than new ones, so out with the screwdrivers, cleaning stuff and hammer (well, not the hammer) to see what could be done.

Luckily for me and Mr. Money, the battery compartment hadn’t fared too badly with just light corrosion to the battery terminals, which soon cleaned off with brake cleaner and some light filing to near good as new standard.

With a new AA battery installed, Mr. Money didn’t really respond that well to having money placed on his hand.  In years gone by, a coin placed on his hand would trigger his eyes to open, the hand to raise to his mouth, the coin to be eaten and lips to be licked, as well as doing a little side to side dance.  Mr.Money was now looking a bit arthritic.  Could it be that new money is a lot lighter than the 1980s money he was designed for or was it just that the battery corrosion had run deeper than first appeared.  I suspected the latter.

I took Mr. Money apart and found that the microswitch that triggers the mechanism was corroded and needed cleaning and that some of the moving parts also needed a quick brush up, all of which had Mr.Money back to rude health.

IMG_5190
FixItWorkshop, March’19, Tomy Mr.Money, in pieces.

While doing the repair, I decided that it wasn’t obvious how the toy came apart and that some owners might decide to scrap theirs due to similar problems.  So, I decided to make a little slide show of the dismantling, to help others.  Enjoy.

Cost of replacement:  £ priceless/ eBay if you’re lucky.  Cost of repair:  One IPA beer.
