Inside The Real Repair Shop 2

Practical vacuum cleaner maintenance advice from the workshop!

I have 5 vacuum cleaners, each kept for specific tasks, as you can imagine.  No, seriously I love vacuum cleaners.  From friendly faced Henrys and Hettys to ‘frickin’ Sharks, I love ‘em all.  Why you ask? Well I guess that using a hoover is sheer joy to me.  You take your machine to a grubby area, run it around the floor, and you are rewarded with instant gratification! The carpet is returned to near pristine condition.  Better still, with many machines, you can see all the muck that was once on the carpet, swirling around in mesmerizing dust-storms, in the see-through debris collection bin!  Cosmic stuff.

Decent vacuum cleaners cost a few quid and far too many repairable machines end up at tips across the country, prematurely.

I suspect that many machines could be saved with basic skills. Most people could manage light servicing with basic tools and a small dusting of knowledge so here are some top tips to help you keep your hoover running well for longer.

Models vary, but you are likely to need the following:

  • Big flat-head screwdriver
  • a cross-head screwdriver
  • damp cloth bowl of hot soapy suds

Before you start work on any appliance, always unplug from the mains.

Brush heads: Upright vacuum cleaners probably have a rotating brush head. Remove any dog, cat, child hair, Lego etc from the brushes, especially the stuff stuck at the sides, where it can cause damage to things like bearings.  Use a knife or some old scissors to cut-away trapped hair etc.  This will improve performance and prevent damage.

FixItWorkshop, Worthing, January’21, Dyson DC07 brush head- looking clean.

Filters:  Many vacuum cleaners have at least one, sometimes three filters to prevent dust entering back into the environment it was sucked-up from, preventing sneezes.  Usually all you need to do is see where the filters are located and to remove any retaining clips/covers.  Some machines use screws to hold the filters in-situ, so you’ll need to familiarise yourself with your instructions.

If you’ve held on to your instructions, well done.  If you’re like most people and have chucked the instructions away, you might need to Google your model and download them. These filters need to be cleaned every three months in warm soapy water and left to dry for at least 24 hours or until bone dry.  Clean filters not only prevent dust build-up in the air, but are essential for the free flow of air into your machine and out again.

A blocked motor filter could cause overheating and damage to the motor bearings and brushes.  Suction can be reduced by a blocked cylinder filter. HEPA filters need to be replaced and can’t be cleaned, however eBay is awash with good quality, cheap alternative filters, so there’s no excuse for not lavishing your machine with some filter-love to let your machine breathe easy.

FixItWorkshop, Worthing, January’21, old and new filters.

Seals:  All vacuum cleaners rely on good seals between joints to ensure perfect performance.  Rubber and foam seals need to be cleaned regularly to prevent the build-up of dirt. Get a bowl of hot soapy water and an old cloth to clean up joints and seal-like surfaces, no special skills required.  Don’t scrub too hard as you might damage the smooth surfaces, just a gentle clean is all that’s needed.  Remember, dirty seals equal vacuum loss.

FixItWorkshop, Worthing, January’21, keep seals clean with a damp sponge or cloth.

Just a small tune-up in the way of basic servicing will mean that your trusty vacuum runs sweeter for longer, saving you time, money and valuable resources.  You’ll also bond with your machine, which is a good thing.

After all that cleaning, you’ve earned yourself a cup of tea. Time to put the kettle on, make a brew and grab a custard cream.

Nice customer feedback: Bosch Athlet

A customer got in touch to say thanks. Always appreciated.

It’s always good to get feedback on the stuff I write here and produce for YouTube.  I welcome it all, good and bad.

Here’s a nice one, relating to my Bosch Athlet repair, I received recently.  Makes it all worthwhile.  https://fixitworkshopblog.wordpress.com/2017/06/16/flimsy-bosch-athlet-25-2v-cordless-vacuum-cleaner.

From a chap who’s repaired his Athlet using my video.

Just a thank you.
I went looking for a solution to the intermittent cut-out on my Bosch Athlet and found your solution. It took all of about 2 minutes once I’d found a suitable length screw and works perfectly. Like it was designed that way.

In your video you thought maybe the handle was removable to allow the attachment of some accessory. It isn’t. It’s just a way of making the box smaller for shipping.

Which means if Bosch put the hole in, and supplied a screw, it would be a much better product. (But of course, then they could sell it as no assembly required:)

But seriously, thank you. I love the Athlet, but that bloody intermittent cutting-out was really beginning to bug me. If I’m ever in Worthing I’ll buy you a pint.

Name supplied.

Well, I know a few good pubs in Worthing!

IMG_3613

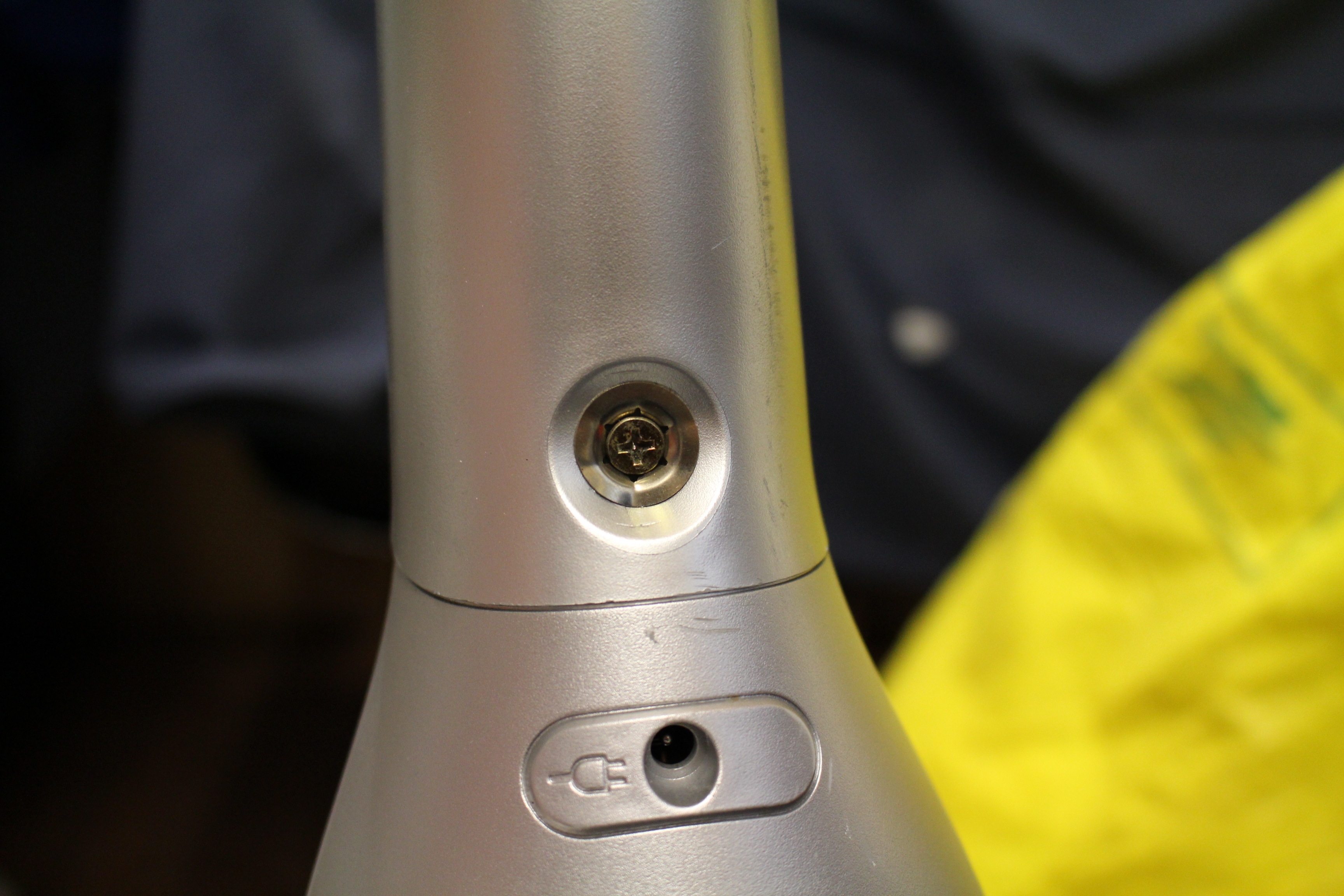

FixItWorkshop Aug’17, Bosch Athlet repair

Happy repairs.

Flimsy Bosch Athlet 25.2V cordless vacuum cleaner

I quite like the idea of this vacuum cleaner in that it’s lightweight, easy to use, highly portable and easy to maintain. All things that make a great product.

The particular vacuum cleaner came in to the workshop, just outside of its warranty period and had been looked after well.  However, it had developed a nasty intermittent cutting-out problem when in use.  I also noticed that the charger’s flex had also cracked near the wall plug, making it dangerous while charging.

First things first and it was off with the rollers and filters to clean any obstructions that might make a device like this overheat.  Nothing obvious there, but all items cleaned and washed as a precaution to allow the roller to move freely and the vacuum to breathe easily.

Closer inspection of the handle area revealed a weakness in the design which had meant that the quick-release mechanism had caused an electrical connection to degrade, causing the cutting out.

The only remedy was to address the handle’s weak point with a mechanical fix and make good the electrical contact.

I hope Bosch take note and make an improvement in this area on an otherwise nicely engineered item.

I also did a small repair to the damaged flex on the charger.

Cost of a new vacuum cleaner, circa £250.  Cost of screw… less than 50p (without my time of course!)

Here’s a little video of the repair…





Kaput Bosch AL1450DV Drill Battery Charger

An old Bosch battery charger gets a new lease of life.

These chargers often lead a hard life, working in dusty, hot and noisy conditions, so I guess many of these fail in time.

This Bosch unit is fairly common among Bosch DIY drill sets and this one had died catastrophically.  With the power applied, this one refused to give the slightest charge to a drill battery, once plugged in.

After some basic testing, I decided to change four components which would have caused the other to fail in a ‘domino effect’.  The cost of the replacement parts was just shy of £10, but definitely worth saving since second-hand units seemed to be changing hands for £40 on eBay, with their condition largely unknown.  The parts (two resistors, MOSFET transistor and diode/ transistor) were readily available online.

I recorded a short video to help others who might have a similar problem with theirs…



fixitworkshop.co.uk repair service and blog

The diary of a tinkerer: Stories, advice, tips and sometimes the odd failure to inspire your own repair.

Repair shop | Repair blog | Repair information source | Making everyday things last longer

The tinkerer at FixItWorkshop.co.uk is Matt Marchant

IMG_2636
FixItWorkshop, Worthing, July 2020, Matt with a load of food mixers

You can follow me on Twitter (if you want)

I also write occasionally for Bangernomics (a car website)

I write for Inside Magazines (Worthing area) every other month

  • I write about things I fix and even those I can’t
  • I offer a repair service for a small fee
  • I occasionally volunteer at Repair Café and similar events in Sussex and surrounding area

I love repairing things and hate throwing things away that can be saved. There’s far too much waste in the world.  Many things that can sometimes appear unrepairable, are indeed repairable, with a little tinkering.

I want to encourage people who doubt their own ability to repair their things, to give repair a go.  After all, if ‘that thing’ isn’t working, grab a screwdriver, take it apart and investigate.  What have you got to lose?

I’ve been tinkering with bikes, cars, coffee machines, toys and vacuum cleaners and pretty much anything that can be dismantled since I could hold a screwdriver.  I’ve worked for BT as a senior engineer, and I’ve studied design, business and electronics.

Enjoy the repair diary of a tinkerer.  I hope it gives you a nudge to repair your broken thing.  If you can’t, I might be able to help.
