I love a good radio. I used to collect them as a kid, working or not, do them up, get them working and I eventually ended up with, er… lots. I’ve since scaled my collection back a bit these days to around 10 or so, quite frankly more than is healthy really.
So when someone got in touch recently with a broken DAB radio to fix, I got quite excited.

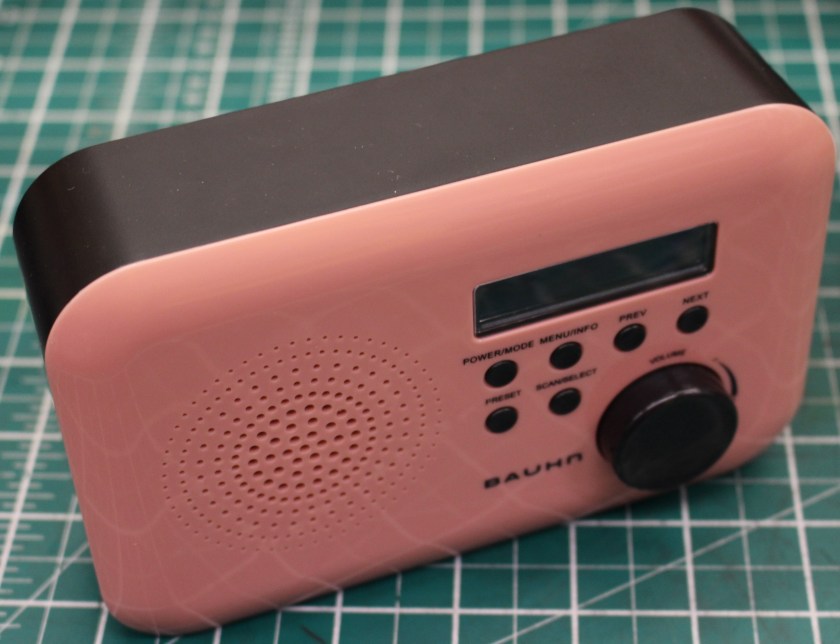

These Bauhn DAB radios (available from Aldi or Lidl in the UK, I think) were on the market for about £10 and at that price they represent great value when compared to more expensive devices.
However, the one in the workshop appeared to have a problem power connector, which when wobbled, made the radio work intermittently. Suspicious.
Having already repaired a similar radio with a similar fault before, I decided to video the repair to encourage others to check theirs, if something similar happens. I hope you find it useful.
Cost of a new radio: £10. Cost of repair: One cuppa and a bit of tinker time.

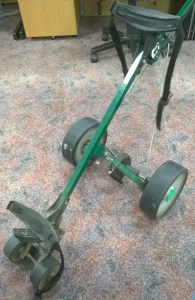

Readers of this blog (I know there are millions of you) will recognise this golf trolley and I’m pleased to report that my first repair, the one to the motor, is still working perfectly. However, the owner of the trolley contacted me with a (funny) problem. Whilst recently enjoying a round of golf on the local fairway, the trolley decided to, by itself, begin to edge away from the second tee and then with some speed, head off in to the distance, without any operation of the dial switch, situated on the handle. Whilst this seemed funny at first, I remembered that the motor on this trolley had the kind of torque that, coupled to small gearbox and wheels on a heavy frame, could do some serious damage, left unchecked.
Original photo taken in Aug’17, below.
Unlike many modern electric golf trolleys, it doesn’t feature GPS guidance, remote control or amazingly, a dead-man’s switch, which seems like a major safety oversight to me. I’d have expected either a kill switch or dead-man’s switch* fitted to the handle on a trolley like this as the runaway scenario could never occur due to fail-safe nature of the switch being operated. With one, the trolley would only run when the operators’ hand was on the handle or cut out when the kill switch is activated, as with the saftety cord mechanism, on a jet ski for example. Perhaps the Mk2 Hillbilly Compact featured this.
*For example, a dead-man’s switch is usually fitted to something like an electric saw where the operator must old a handle-type switch to make it run. Once the operator lets go of the handle, the motor automatically fails-safe and cuts-out.
On with the repair. The trolley features some exposed connectors and cabling and it seemed sensible to check the continuity of the cables running up and down the handle shaft, as repeated trolley folding might have caused a problem with the wiring. Fortunately, the cabling was OK.
The owner had mentioned that the handle, where the speed control switch is located, had got wet in the past, which made my alarm bells ring.
Opening up the handle, which only required a basic tool kit, revealed evidence of water damage and corrosion to the speed control terminals. Luckily the owner of the trolley had stocked up on spare switches!
FixItWorkshop, Feb’18, Hillbilly Compact handle.
FixItWorkshop, Feb’18, Hillbilly Compact switch.

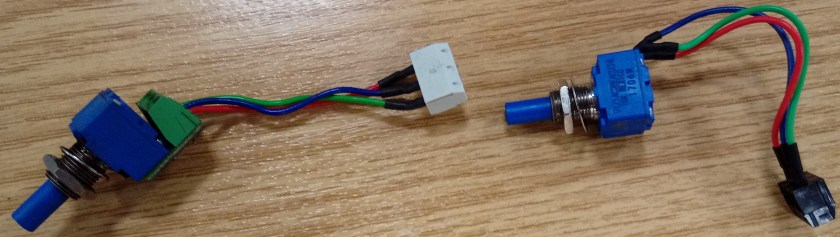

Removing the existing switch revealed intermittent continuity and varying amounts of resistance, which was not good. A fault most likely to have been caused by water ingress or excessive shock. The owner had supplied two ‘new old stock’ (NOS) switches. Which one to fit?
From time to time, it’s downright sensible to either fit NOS or second-parts as they’re usually cost-effective and are more likely to fit over pattern parts. But time can also affect apparently shiny parts. This was a case in point. I knew that the switch should vary resistance from open circuit to 10KOhms in either direction from COMM. The old one didn’t and one of the ‘new’ parts only went to 2KOhms, so was not in specification. Luckily, the remaining NOS switch worked fine and once refitted, and the handle reassembled, the golf trolley was ready to make the job of carrying clubs easier, once again.
Cost of replacement trolley: ££££ Cost of repair; £10 plus time. Moral of the story; don’t assume NOS parts will work. Test them first.

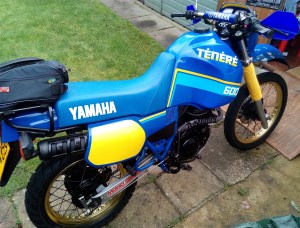

Beloved Yamaha XT600 Ténéré nearly goes up in smoke.
I’ve had my beloved Yamaha XT600 Ténéré for about 8 years and have deliberately kept it away from these pages as I’m always doing something to it. It could have its own website with the amount of time, not to mention money and effort I’ve spent on it.
This story is note-worthy as it’s a lesson for me and others who ride and maintain old bikes!
I don’t use the bike that much at the moment, but I always keep it ready for the road, just in case I get a chance to take it out. Whilst doing a few checks recently, I decided to fire it up and get the oil pumping around the engine, so that things don’t seize up.
The tank was pretty full (over 20 litres) and upon opening up the manual fuel valves, giving it a bit of choke, the engine fired-up on the second crank. It sounded quite sweet.
However, after about 30 seconds, I heard ‘running liquid’ before smelling the intense scent of super unleaded. Looking down, I was standing in about 2 pints of fuel, on the wooden shed floor with a hot exhaust casually burning the fuel that was dripping on to it. Nasty.
I won’t repeat what I said, but suffice to say, I hit the bikes’ kill switch virtually instantly. I shut the flowing fuel off and wheeled the bike out in to the open air.
After several cups of tea, I found the cause of the problem. The small fuel feed pipe which runs from the float chamber to the main jet on the carburettor had failed causing the leak.
FixItWorkshop, Jan’18, Yamaha XT600 Ténéré, fuel leak, new pipe.
When I bought the bike, I thought I’d changed all the fuel lines, but I’d missed one, quite an important one as it turned out. It goes to show that even enthusiastic mechanics make mistakes.
The cost of the repair was £1 for a new piece of fuel hose, but the point of this story is: If you have any petrol-powered things, especially old motorbikes; don’t run them in an enclosed wooden space. Always run them outside.
This lovely wall clock had been running perfectly fine until a friend of mine decided to move it temporarily from the wall, during a recent bout of home decorating. Now, I’m no expert on French wall clocks, but we think this one is circa 1920s or 30s, but either way, it’s a lovely thing to have in the house. This one is also fitted with Westminster chimes, so one assumes it was made for the English market as an export item, all those years ago.
Once the paint had dried, the owner decided to re-fit the clock to its hook on the wall, but it simply didn’t run, even when fully wound-up. Strange, what had happened?
Having a quick look at the front of the clock revealed nothing much. The pendulum was where it should be and appeared to swing freely, as a pendulum should, but there was a slightly strange ‘double-click’ tick-tock, indicating something wasn’t right. Clocks of this type should emit a definite even tick – tock -tick-tock. This one wasn’t. Hmm.
Before going to see the clock, I had already decided that the small spring that suspends the pendulum could have been broken, so I packed a few spares I happened to have, just in case. Opening up the mechanism revealed that the spring was actually intact, not bent or warped and therefore perfectly serviceable. It was fairly obvious almost immediately that the small clasp which secures the pendulum to the escapement lever was bent and the probably cause of the problem. All that was needed was a small amount of tinker-time to fix that with a small pair of pliers. However, that wasn’t the end of the story. Having undergone a ham-fisted removal from the wall, the escapement pendulum lever was now in a slightly different position and some more fettling was required to get the clock back ‘in-beat’, a common requirement on this mechanism type and often the reason why a clock won’t run, even when fully wound.
As the clock mechanism was out of the main casing (see photo) I decided to prop-up the mechanism on two tins of beans to allow the pendulum to hang over the side of a level table. This allowed me to access to the clock’s mechanism and hear what was going on clearly. A slight adjustment on the main pendulum lever to the right on this mechanism and the clock was back ‘in beat’, keeping good time.

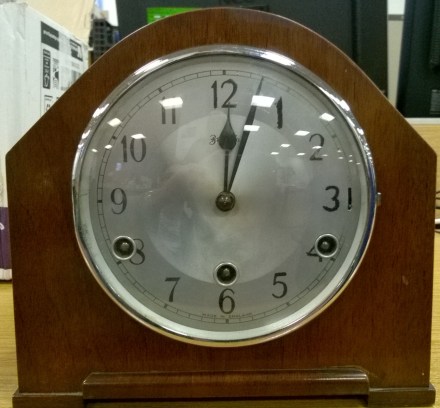

Someone got in touch regarding a family heirloom clock that wasn’t running. The Bentima clock itself was in good overall condition and considering its age, had been in the same family for a couple of generations or so. The owner really missed the clock ticking and chimes on the hour.

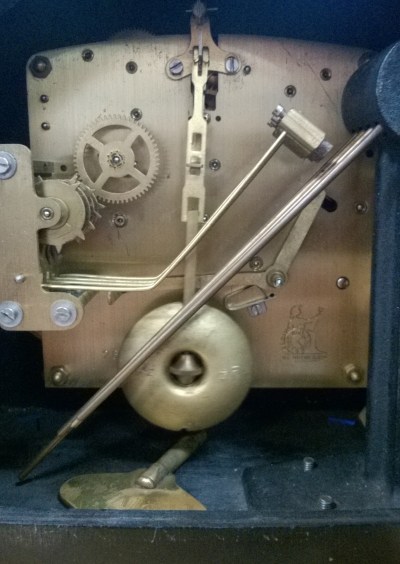

Access to the clock’s mechanism is pretty straightforward on this type of clock as there’s a simple wooden door on the back with a catch. Opening up that door reveals a weighted pendulum with escapement above. It was clear that someone, at some point, had replaced the pendulum spring and that all that was probably required was a minor adjustment to make the ‘tick match the tock’, or in other words, get the clock back ‘in beat’…tick-tock-tick-tock-tick-tock… evenly spread.
On this mechanism, all that was needed was a level surface and a small flat-bladed screwdriver to slightly move the pendulum pivot point. Once running, a small adjustment to slow-down the running was needed (time was too fast), but this was easily adjusted using the knurled screw on the pendulum. I recommended that if a flat level surface at home couldn’t be found, 1 penny pieces could be used under the clock’s feet to restore balance. A nice little repair.
Cost of a clock like this: Check eBay. Cost of repair; my time.
When my wife isn’t looking after our daughter, she sings part-time in and around Sussex and uses a simple portable microphone and amplifier set for gigs. The amp and the rest of the kit lead a hard life, being transported between the car boot and venue and on one occasion, the microphone was dropped from a height. I guess things could have been worse, it could have been the amp!
The microphone now rattled badly and seemed to cut out when connected up, even when turned up to 11. Not a good sound when she was in the middle of ‘Moon River’.
The microphone actually came from a Lidl karaoke set and is made by Silvercrest, a Lidl brand. It’s a heavy, metal bodied microphone with a decent quality feel and metal grilled top.
The rattle seemed to coincide with the cutting out, so it seemed sensible to open up the mic. Three Phillips screws hold the casing together and upon opening it up, the problem quickly became apparent. The metal weight inside had come away from the inside of the casing and was occasionally ‘shorting’ the connections on the back of the on/off switch. Not good.
While in bits, I checked all the wiring for continuity, no problems there and decided to clean the switch with contact cleaner for good measure. Once all the electrical side of the mic was proved, I reassembled the casing with the parts, adding a little hot-melt glue to the metal weight to prevent it coming in to contact with the back of the on/off switch.
This wasn’t the end of the song (sorry).
Upon hooking the mic up to the amp, it now worked again without cutting out, but I couldn’t help but notice that the lead connecting to the base of the mic seemed to be causing a slight crackle. Not a nice sound effect.
Opening up the three-pin mic connector revealed a simple design, three poles soldered to the microphone’s wiring, one core and one screen. A quick cut, strip and re-solder and the lead was ready to roll once again. Before I did the cable crimp back up, I added another dab of hot melt glue between the cable outer and flex guard, to ensure the cable couldn’t twist, which might cause the connector to fail again.
Cost of a new microphone £20+. Cost of repair; Time plus soldering and a bit of glue.
‘My Fairlady’ sings again…
FixItWorkshop, Sep’17, Silvercrest SKS15A1, weight in situ.
FixItWorkshop, Sep’17, Silvercrest SKS15A1, broken wire, before soldering.
FixItWorkshop, SeFixItWorkshop, Sep’17, Silvercrest SKS15A1, inside the casing.p’17, Silvercrest SKS15A1
FixItWorkshop, Sep’17, Silvercrest SKS15A1, in bits.
Readers of this blog would have worked out by now that I’m a little bit sentimental.
A short story:
When I moved away from home, many years ago, my mum made me a ‘moving out kit’ in which contained a trusty Probus Butterfly can opener, the classic British design can opener type. Today, it broke. I was gutted.
You can still buy the same tool for just over £1, so it clearly doesn’t usually cost-in to repair such an item. However, all that seemed to be wrong was a broken pivot or spindle. The original riveted fixing had worn and eventually sheered off today when opening the cat food.
All that was needed was to re-rivet the can opener and all would be well again. Luckily, I had some rivets lying around of the right size. I grabbed my pop-rivet gun and 5 minutes later, it was ready to open cans once again…joy.
FixItWorkshop, Sep’17, Probus Butterfly Can Opener repair
FixItWorkshop, Sep’17, Probus Butterfly Can Opener repair
FixItWorkshop, Sep’17, Probus Butterfly Can Opener repair
