Satellite Bass Guitar that wouldn’t go to 11.

A Fender Precision style Satellite P Bass guitar repair…

A friend of mine, who plays in a Portsmouth-based Psychedelic Garage Rock & Roll band, brought in a Satellite Bass Guitar with a few issues.  Firstly the volume control was noisy and crackly and secondly, it was a little quiet.  Not good for those moments where you need to go one higher, to eleven.

The band are:  60th Parallel

IMG_4905
FixItWorkshop Jan’18, Fender Precision style, Satellite P-Bass.

Opening up the compartment behind volume, tone and jack plug socket revealed messy wiring and dodgy connections.  The owner had already supplied a replacement potentiometer for the volume control, so all I had to do was replace the one fitted, re-make the poor connections and give the wiring a general tidy-up.

IMG_4908
FixItWorkshop Jan’18, Fender Precision style, Satellite P-Bass, wiring before work.

The guitar has Dimarzio ‘Model P’ pick-ups which can be wired many different ways, depending on the application and musical taste.  This particular guitar, circa 1976, is a Fender Precision style Satellite bass (P-Bass) and has a modified ‘through neck’.

IMG_4906
FixItWorkshop Jan’18, Fender Precision style, Satellite P-Bass, volume (top) and tone (bottom) controls.

Testing the guitar before commencing work revealed a slightly quiet, but mainly crackly output from the amplifier, the tone control was fine.  The owner had also complained that the bass sometimes cut-out, mid song.  Not ideal.

Removing the volume control was straightforward and only required a spanner to remove the nut, after pulling off the volume knob.  The rest of the job just involved careful de-soldering, cutting out the poor wiring and replacing it with new wiring where needed and some heat shrink to tidy things up. Having not repaired an electric guitar before, I did make a quick wiring diagram for reference!

Once completed, I hooked it up to the amplifier again which revealed a much cleaner, crackle free note.  Sadly, I can’t play the guitar, so I wasn’t able to test it properly!

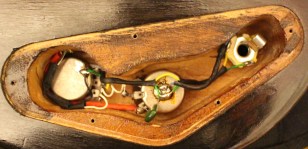

IMG_4911
FixItWorkshop Jan’18, Fender Precision style, Satellite P-Bass, neater wiring.

Cost of a new bass:  Name a price.  Cost of the repair; about £2.00 plus tinker time.



Lucky Voice Microphone without the X-Factor

Lucky Voice Microphone repaired.

A colleague of mine came in with a broken microphone, which is part of a Lucky Voice karaoke set and retails for about £60.00 on Amazon.  The microphone had worked pretty well, but recently had lost its ‘X-Factor’ somewhat.

The microphone is fairly standard fare and connects to a standard XLR plug and socket arrangement.  As this part is usually under the most stress as the singer moves about, it seemed sensible to have a look at that first.  Upon connection to my amp, there was a huge amount of crackling which seemed to coincide with cable movements at the microphone end.  Swapping the lead for a known good one I had proved that the microphone was fine, but the lead not so fine.

Only one screw holds the plug together and straightaway, the problem presented itself.

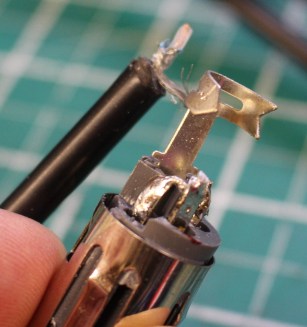

IMG_4519
FixItWorkshop, Oct’17, X-Factor microphone, XLR connector.

The main core had detached from the connector, as the outer cable sheathing has come away from the XLR connector body clamp.  Not ideal.

A quick strip back and solder job and the wires were connected back where they needed to be.  A little dab of hot-melt glue on the cable grip and a re-tighten and the cable was not going to move anyway.

With the plug re-assembled and the screw put back, the microphone tested perfectly on the amp, ready for karaoke once more.

Cost of a new similar lead: £10,  Cost of repair: 15 minutes, dab of glue and solder.  Nice.

Testing, testing, 1-2-what?

My Fairlady sings again…

When my wife isn’t looking after our daughter, she sings part-time in and around Sussex and uses a simple portable microphone and amplifier set for gigs. The amp and the rest of the kit lead a hard life, being transported between the car boot and venue and on one occasion, the microphone was dropped from a height.  I guess things could have been worse, it could have been the amp!

The microphone now rattled badly and seemed to cut out when connected up, even when turned up to 11.  Not a good sound when she was in the middle of ‘Moon River’.

The microphone actually came from a Lidl karaoke set and is made by Silvercrest, a Lidl brand.  It’s a heavy, metal bodied microphone with a decent quality feel and metal grilled top.

The rattle seemed to coincide with the cutting out, so it seemed sensible to open up the mic.  Three Phillips screws hold the casing together and upon opening it up, the problem quickly became apparent.  The metal weight inside had come away from the inside of the casing and was occasionally ‘shorting’ the connections on the back of the on/off switch.  Not good.

While in bits, I checked all the wiring for continuity, no problems there and decided to clean the switch with contact cleaner for good measure.  Once all the electrical side of the mic was proved, I reassembled the casing with the parts, adding a little hot-melt glue to the metal weight to prevent it coming in to contact with the back of the on/off switch.

This wasn’t the end of the song (sorry).

Upon hooking the mic up to the amp, it now worked again without cutting out, but I couldn’t help but notice that the lead connecting to the base of the mic seemed to be causing a slight crackle.  Not a nice sound effect.

Opening up the three-pin mic connector revealed a simple design, three poles soldered to the microphone’s wiring, one core and one screen.  A quick cut, strip and re-solder and the lead was ready to roll once again.  Before I did the cable crimp back up, I added another dab of hot melt glue between the cable outer and flex guard, to ensure the cable couldn’t twist, which might cause the connector to fail again.

Cost of a new microphone £20+.  Cost of repair; Time plus soldering and a bit of glue.

‘My Fairlady’ sings again…
