Old school iPod Nano battery replacement

Apple really don’t want you to get into their products- but they’re not alone.

We have two Apple products in our house from the early 2000s; one iPod Nano 1st generation and the 1st generation iPod colour.

IMG_9910
FixItWorkshop, Worthing, August’19, Apple iPod Nano.

Apple tech polarises opinion as it’s always premium priced and is quite locked-down to ‘Apple only platforms’.  Some people love the ease of use that their products seem to offer, others get frustrated with the lack of integration with other products.

Despite being an Android house, we keep the iPods as they are quite robust, but due to age, battery life has recently become an issue.

Make and model:  Apple iPod Nano

Fault reported: Battery not holding charge

Cost of replacement:  eBay, loads out there

Cost of parts:  £8.00

Hours spent on repair:  1

Tools needed:  Spudger, small flat-bladed screwdriver, soldering iron

Sundry items: None

Repair difficulty:  4/10

Cups of tea:  1

Biscuits:  2 (Custard Creams)

Let’s just get it out of the way now.  Apple really don’t want anyone opening up their devices and it was a wrestle to open up the casing, without snapping something (the iPod, not one of my nails or something).

The battery in the Nano is situated beneath the metal cover, which must be removed using a spudger.  A spudger is a small lever with a fine edge that can be used to gently open up small, usually plastic, push-fit, ‘clicked-together’ things.  Spudgers are kind of disposable and I always seem to break one on each job.  I must look out for a strong, stainless steel item.

Using the spudger on the Nano isn’t easy, since (as I later found out) all of the metal tangs located around the metal casing, dig in to the plastic face.  Trying the separate the two halves is a real battle and there’s a real risk of damage should you use too much force.

After a good 15 minutes of wrangling with the Nano, the casing popped off.

This slideshow requires JavaScript.

The battery on this model uses a small fly lead which is soldered to the main PCB, again more evidence to suggest that Apple had no intention of making the Nano’s battery replaceable by most users.  Extreme care had to be taken with the soldering too since the PCB’s components are so close and small, making it too easy to use too much heat, causing irreparable damage.

I took my time and was able to fit the new battery (push fit) and solder the connections OK.

The cover popped back on and fortunately, the screen lit up once more, when the menu button was pressed.  Phew. Tea time.



A Challenge Circular Saw

A tool gets saved from the bin!

I had a slightly unusual request to do a ‘bit of soldering’ on a circular saw recently.  As I’m not one to say no to a broken item, I said “yes, I’ll have a look” as I was intrigued.

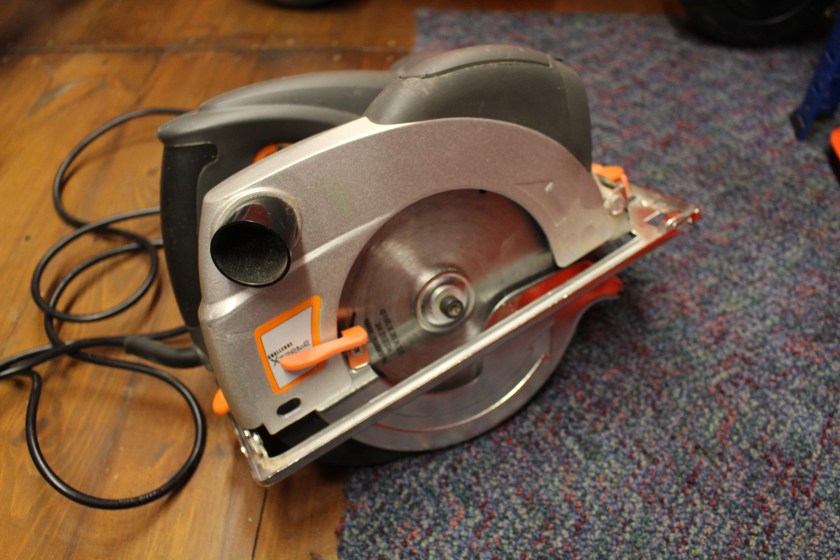

IMG_8361
FixItWorkshop, March’19, Challenge Xtreme Circular Saw.

This Challenge Xtreme Circular Saw was working fine, but the spring-loaded safety guard had split at one of the ends and was now dangerous to use.

I guess this saw was originally sold at the ‘budget’ end of the market and some of the materials used on it were light-weight to say the least.  But having said all that, for light use, this saw was a very good tool with features like a laser to guide cutting.

The guard was made of a ‘mazak’ style alloy, which would have been pressed together at the factory and therefore quite difficult to re-attach.  Definitely not for soldering, welding or brazing.

I could have used a chemical metal compound as a glue or even epoxy resin, but in the end, I opted for making a simple couple of neat drilled holes with a small cable tie to bring the separated halves together, a neat mechanical and cheap fix to get the tool usable once more.  Sometimes, simple is best.

This slideshow requires JavaScript.

Cost of replacement: £40.00 Cost of repair:  One cable tie. One cup of tea.



Bissell Powerlifter Pet noisy roller beaters

Now, some of you will remember that I’ve written about a similar issue before, but I think it’s worth covering again as often, complete replacement items need to be purchased, which can be costly.

This Bissell Powerlifter Pet vacuum cleaner had snapped a belt, due to an obstruction in the roller/ beater area and while the casing was open to replace the belt, I removed the beater to see how smoothly it turned.  It was noisy.

Seemingly, Bissell will only supply a complete unit for around £30, with shipping, so given the overall value of the machine, it seemed sensible to have a look at the noisy component on the bench.  The bearing housings, located at each end of the roller, come out easily and with some careful manipulation, each bearing can be removed.

On this unit, both bearings were dirty and dry.  Now, I could have replaced them with a generic bearing, but in the spirit of thrift, I decided to clean the bearing races with brake cleaner and then repack with high-melt-point grease.  When reassembled to the roller/ beater, it ran very smoothly and was much quieter, once re-fitted to the vacuum cleaner.  Job done.
